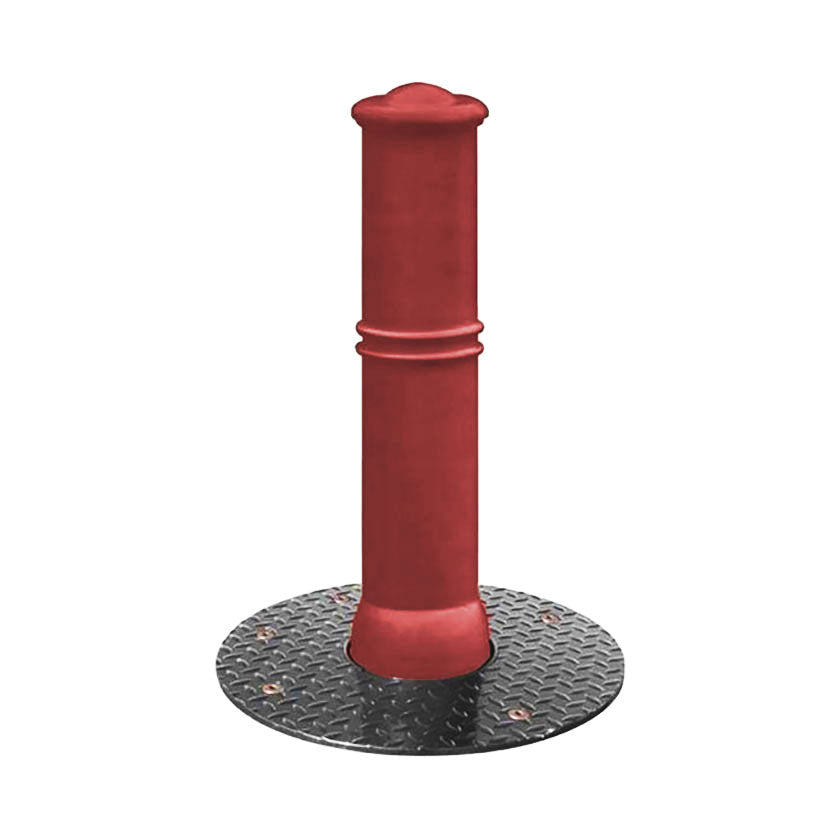

Agora semi automatic rising bollard in a Red powder coated finish.

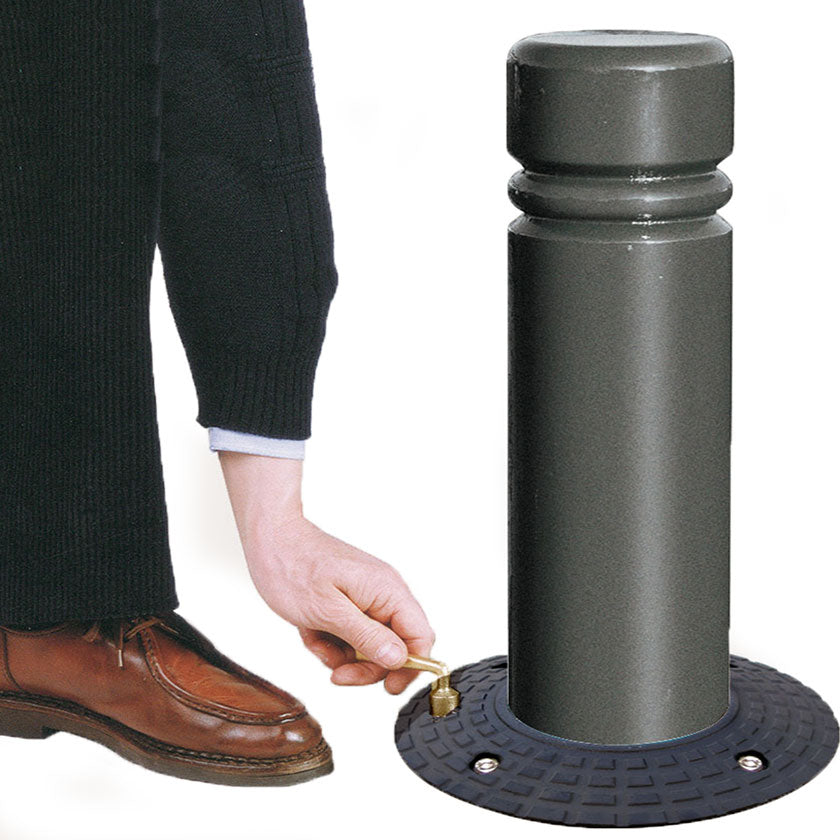

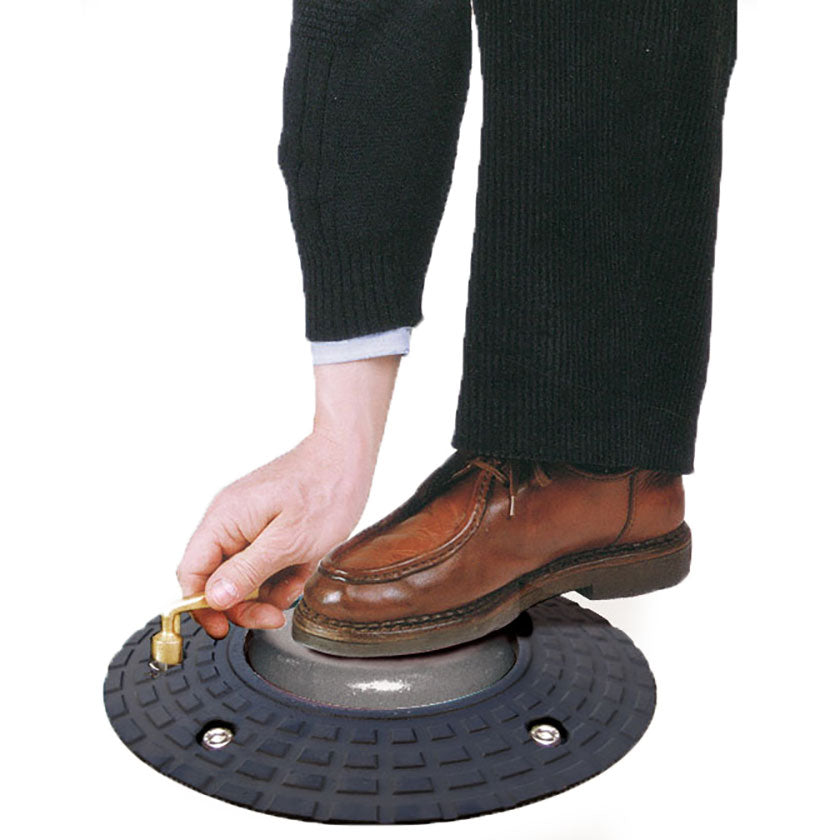

Unlocking the Agora - semi automatic rising bollard.

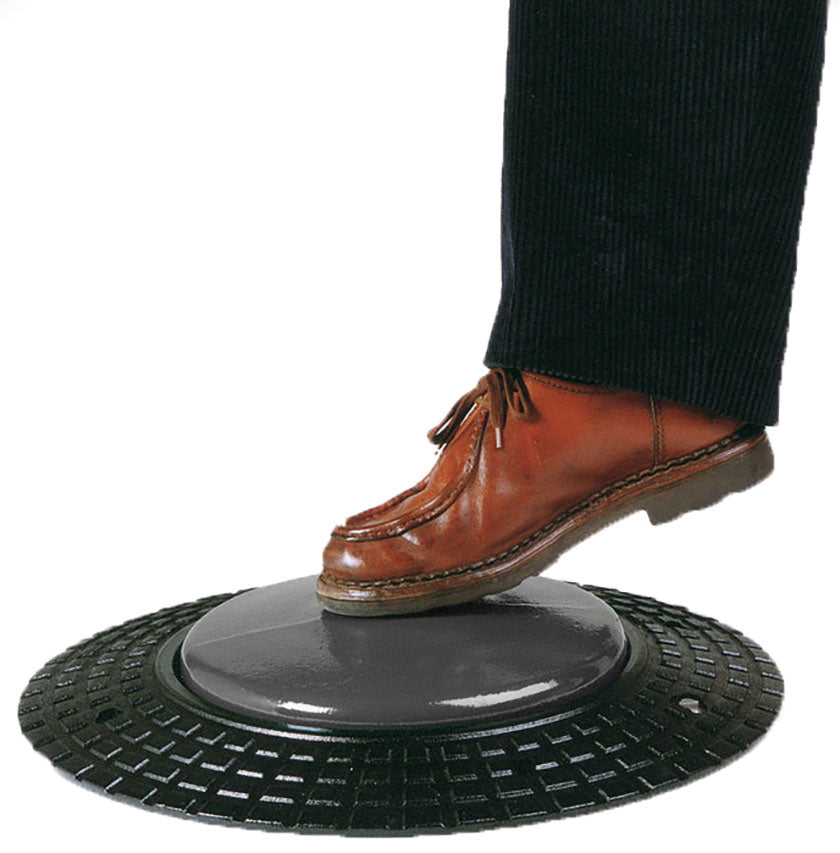

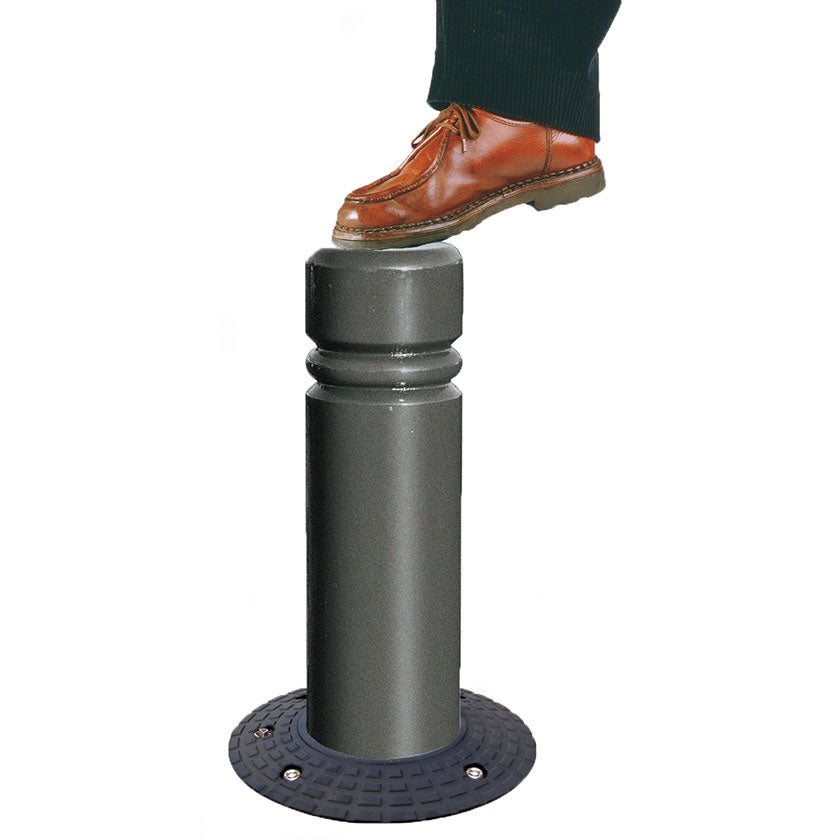

Pushing down the Agora - semi automatic rising bollard.

Raising the Agora - semi automatic rising bollard

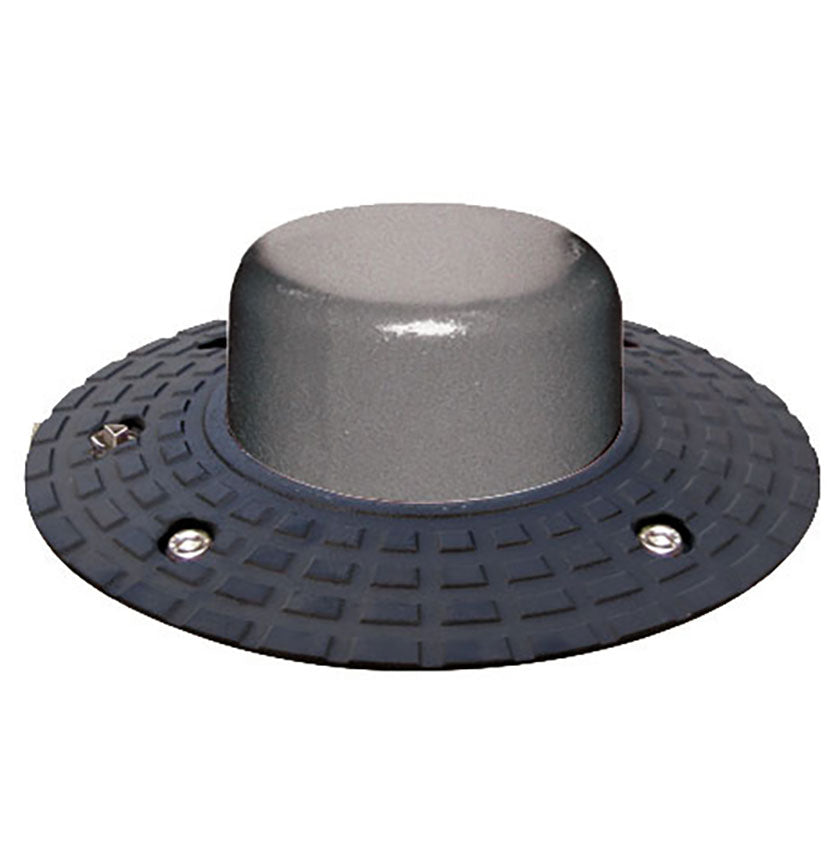

Agora - semi automatic rising bollard lowered into the ground

Agora semi automatic rising bollard in a Blue powder coated finish.

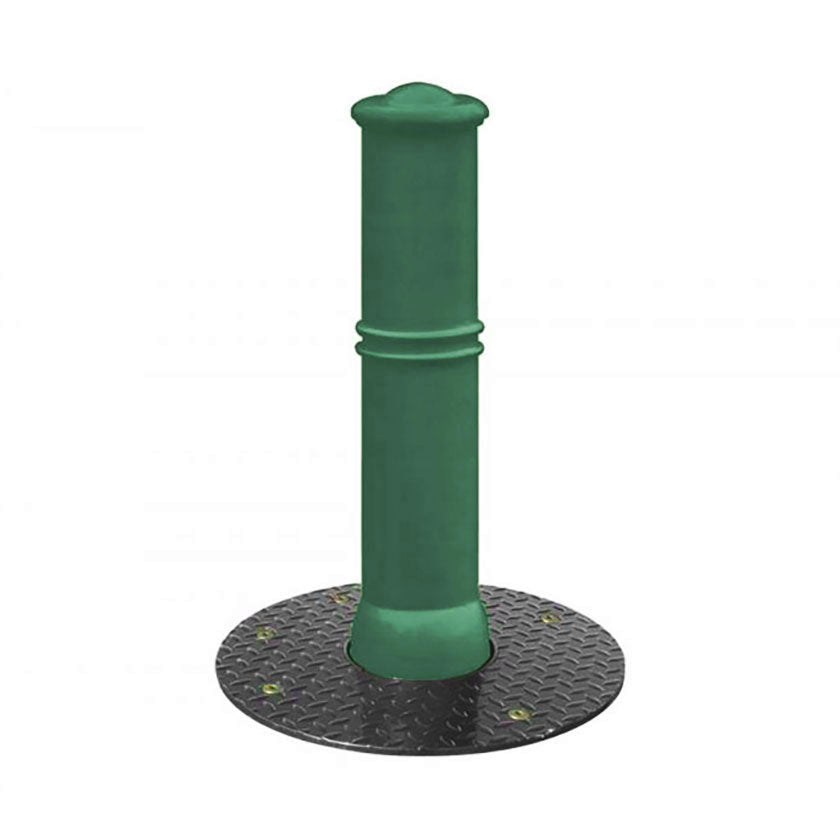

Agora semi automatic rising bollard in a Green powder coated finish.

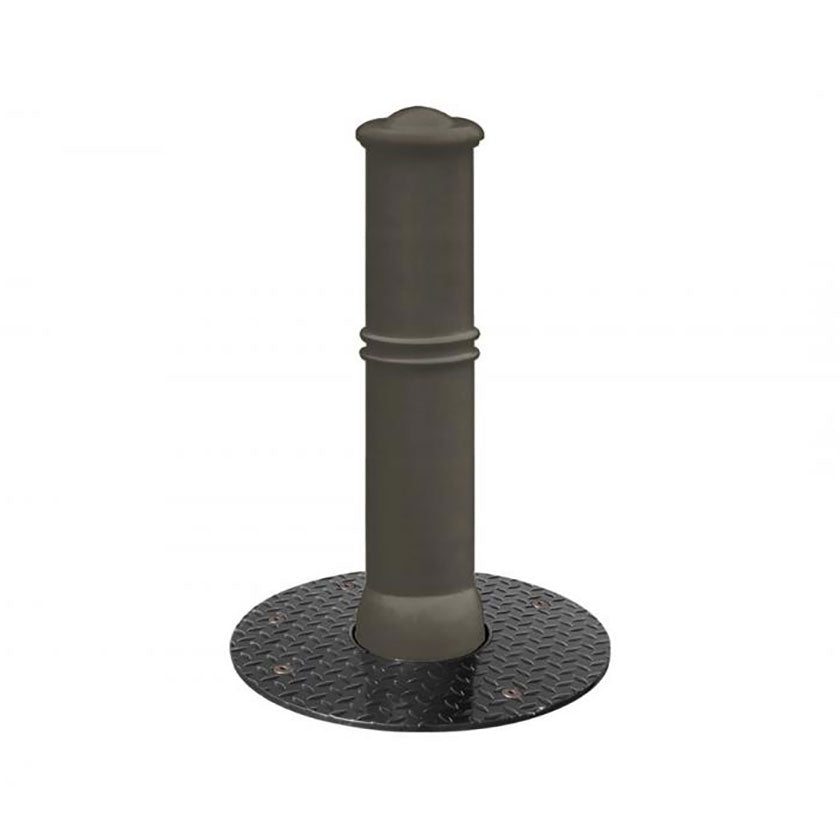

Agora semi automatic rising bollard in a Grey powder coated finish.

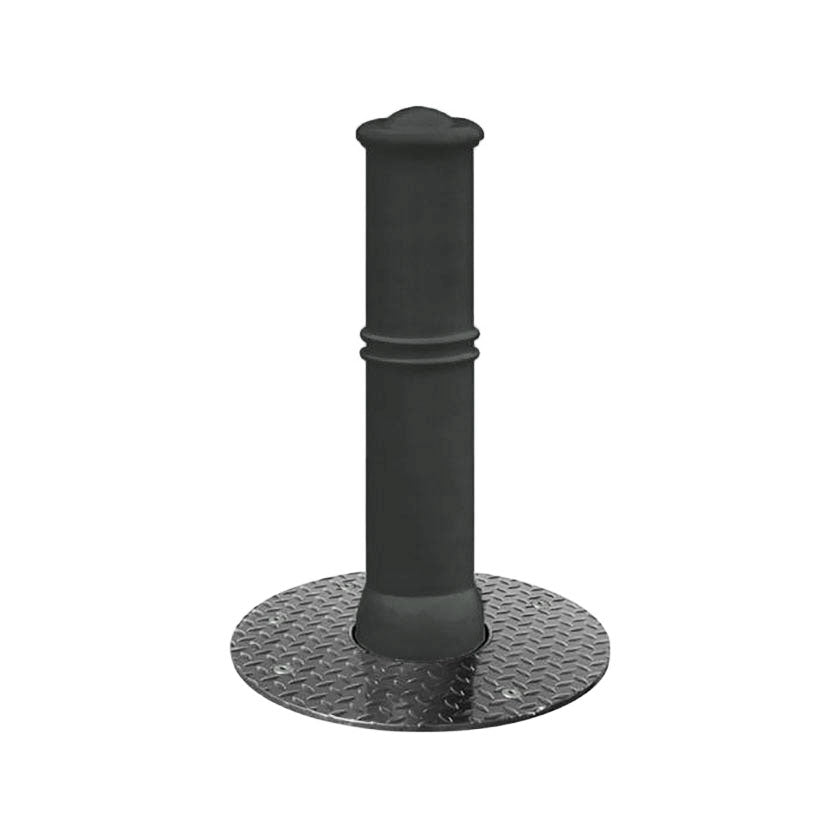

Agora semi automatic rising bollard in a Black powder coated finish.

Agora 160 Semi-Automatic Rising Bollard

Name: Agora 160 Semi-Automatic Rising Bollard
Brand: SPL-Procity
SKU: 206618 - RAL 3004
Price: 1630.0 GBP
Availability: InStock

£1,630.00 inc vat - £2,062.00 inc vat£0.00 inc vat

Description

Stylish cast iron semi-automatic rising bollard in a traditional design for domestic and commercial applications where occasional and rapid access control is required.

Diameter: 160mm.
Raised height: 725mm.
Pull up weight: Semi-automatic (0 kg).
Steel gauge: 10mm.
Lock: Integral (1 tool supplied).

Guarantee

5 Year manufacturer's guarantee.
10 Year guarantee against corrosion.

Overview
Installation
Video

Overview

No wiring or 230V power supply required.
No manual lifting weight required.
Impact resistance 5000 J.
Internal sealed gas piston with distortion-resistant ball bearings.
Stainless steel locking mechanism.
Non-slip ground cover with a raised paved effect.
Compatible with our Agora range of removable and static bollards.
Mild steel manufactured to BS EN 10025 & BS EN 10027-1.
Hot dipped galvanised steel to BS EN ISO 1461 (2009).
154kg overall product weight.
20kg vertical force is required to lower the bollard.
Made in France.

Installation

XL Semi-Automatic - Sub-surface (to be concreted in below ground).
Foundation Box: 875 x 270 x 10mm gauge galvanised steel.
Depth required: 1025mm (includes 150mm for drainage).
Casing eyelets attached for quick and easy installation.
Suitable for flat or sloping ground.
All hard and soft surfaces.
High water table areas may experience slow water drain-off.
Facility for a pipe connection to allow for rapid water dispersion.
Not suitable for sites prone to regular flooding.
Please Note: When lowered, this bollard should not be positioned in the tyre path of passing vehicles.
