Guardian Wireless 600 Automatic

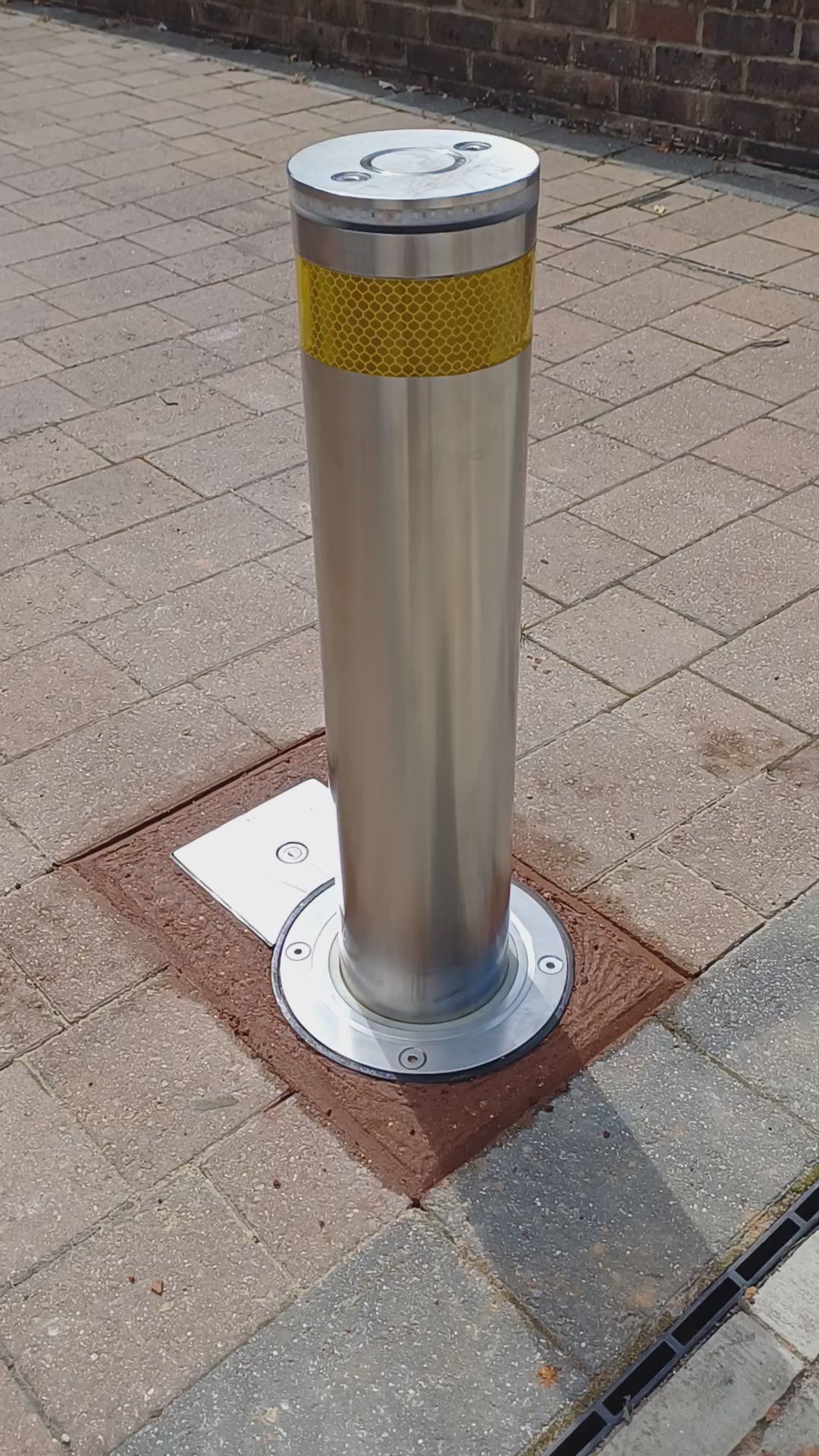

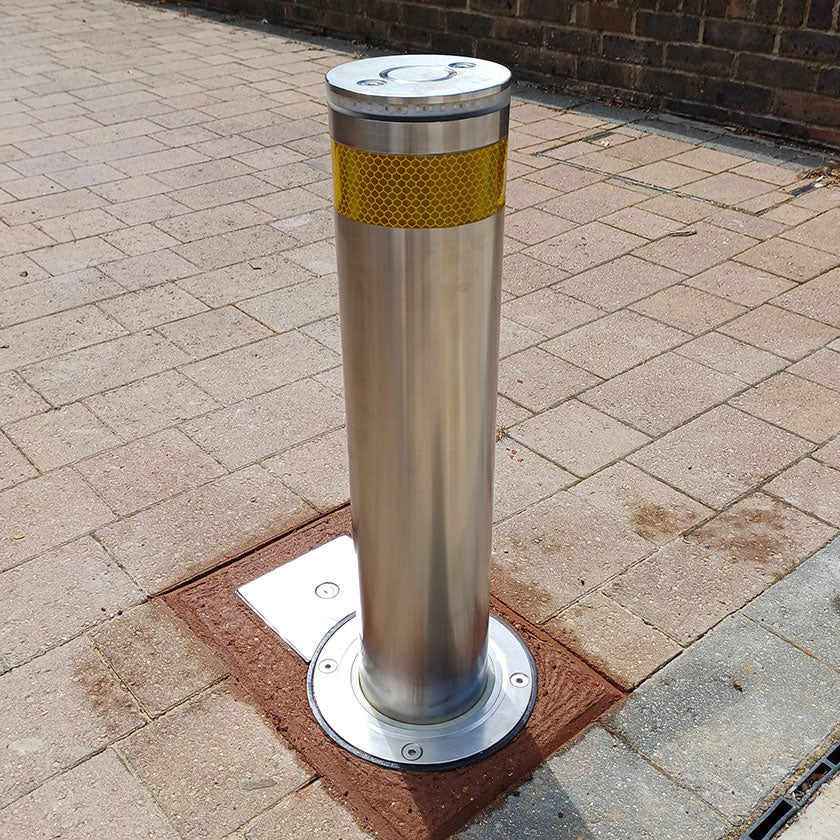

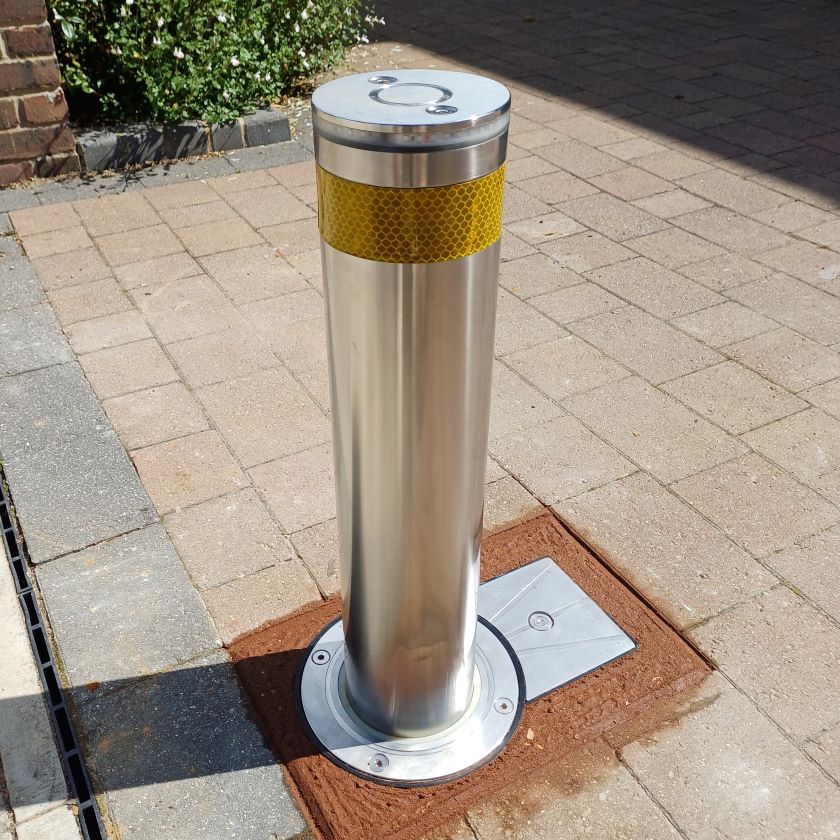

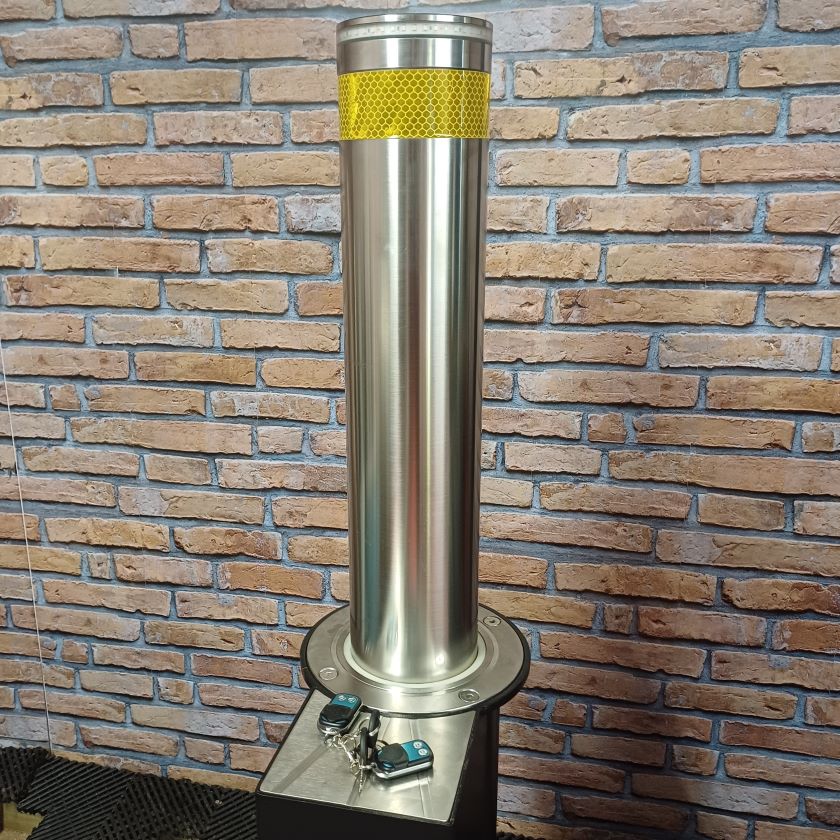

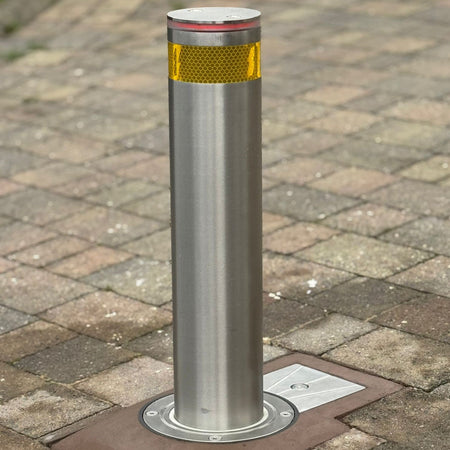

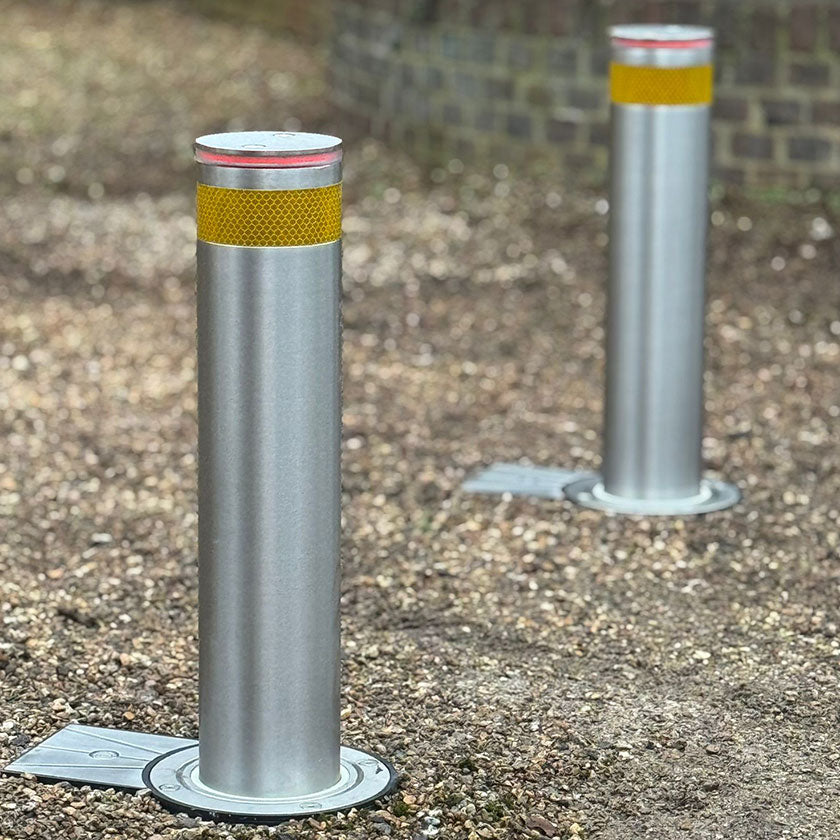

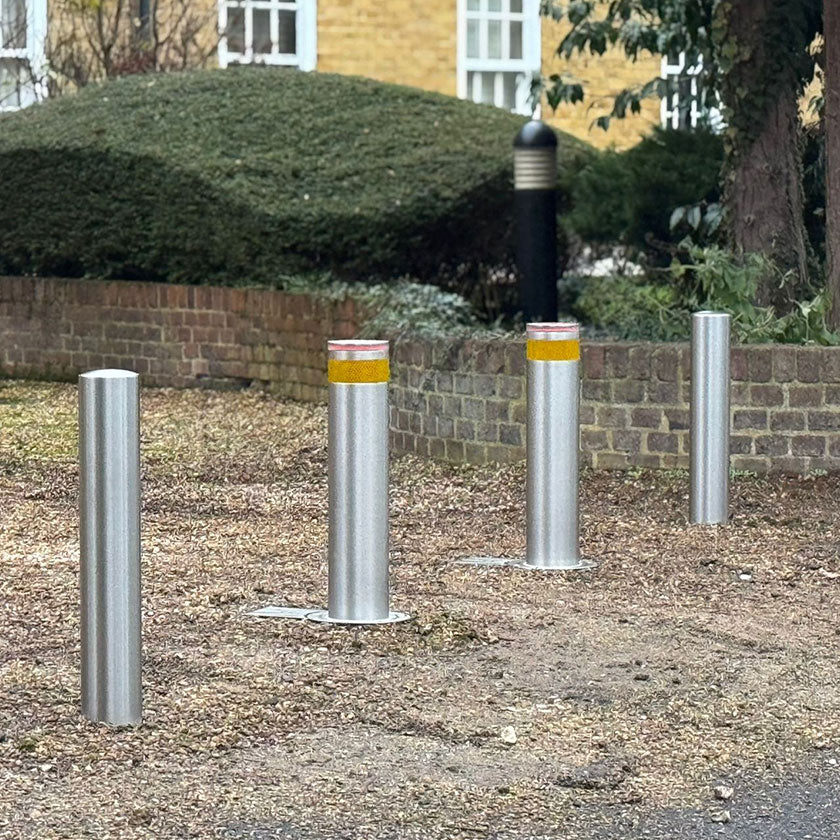

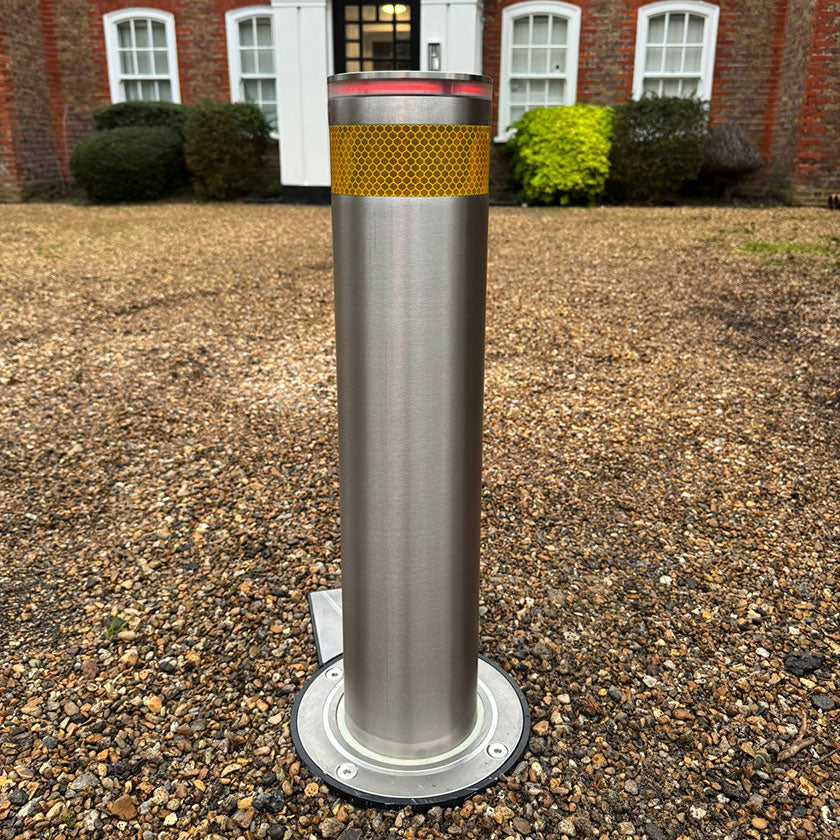

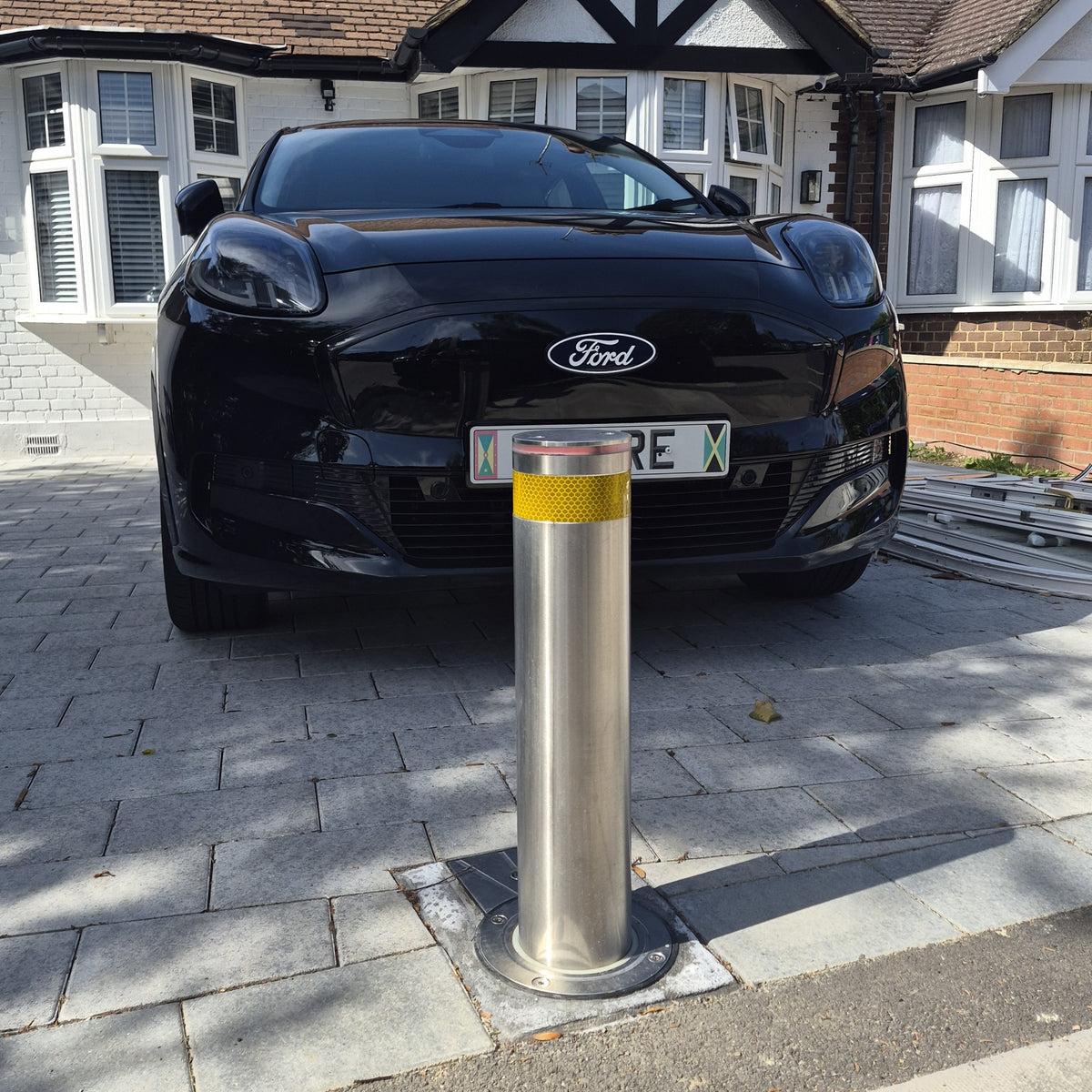

With no trenching, electrical connection, or complex configuration required, the stylish Guardian 600 wireless battery-powered automatic rising bollard would be the perfect choice for any driveway security or private car parking application where the provision of a power supply is both demanding and impractical. Finished in 304-grade stainless steel, 600mm raised height, 133mm bollard diameter, 3mm stainless steel wall, LED lighting crown, and an 8-second opening/closing time, the Guardian wireless 600 battery-powered automatic bollard provides an alternative cost-effective security solution to protect the vehicles on your driveway or reserve your private parking space.

Bollard Specification

• 133mm diameter.
• 600mm raised height.
• 3mm stainless steel wall.
• 304-Grade stainless steel finish.

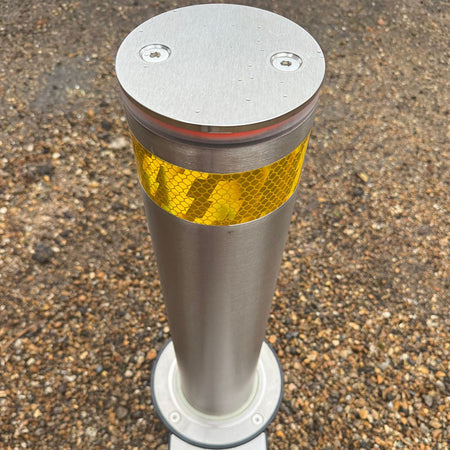

• Integral LED light crown.
• Electro-Mechanical motor.
• Integral locking mechanism.

• IP67 protection with an epoxy-sealed motor and battery.
• Requires no trenching or hard wiring to a power supply.
• Bollard is supplied ready to use with no configuration or set-up required.

What's included with each bollard?

• All-inclusive delivery and installation.
• Spoil removal from the site.

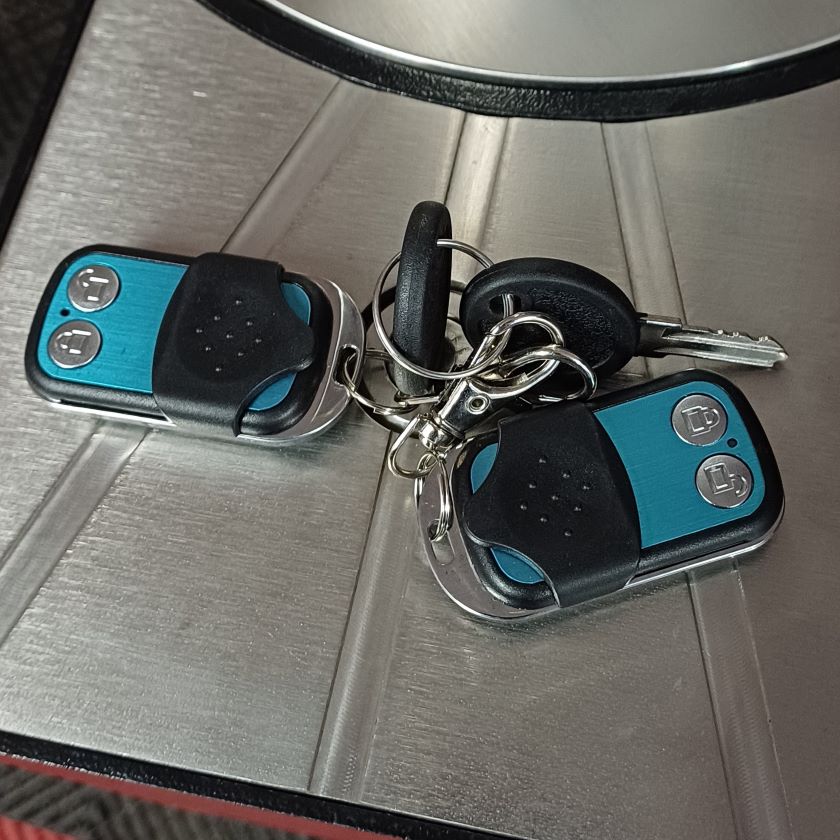

• 2 x Rise/Lower Remote Controls.

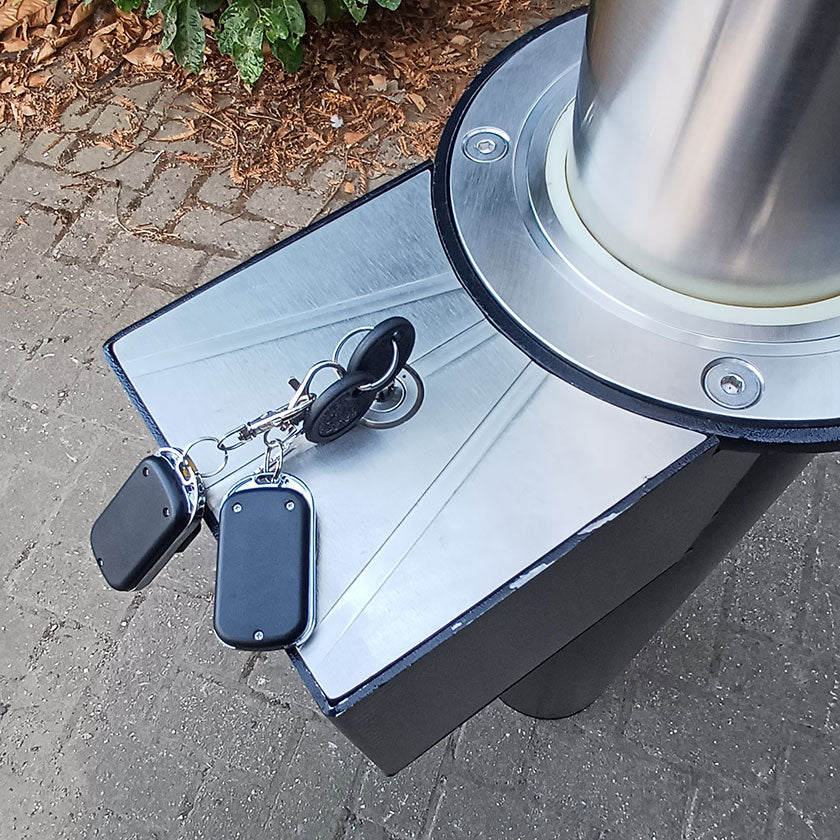

• 2 x Battery Enclosure Keys.

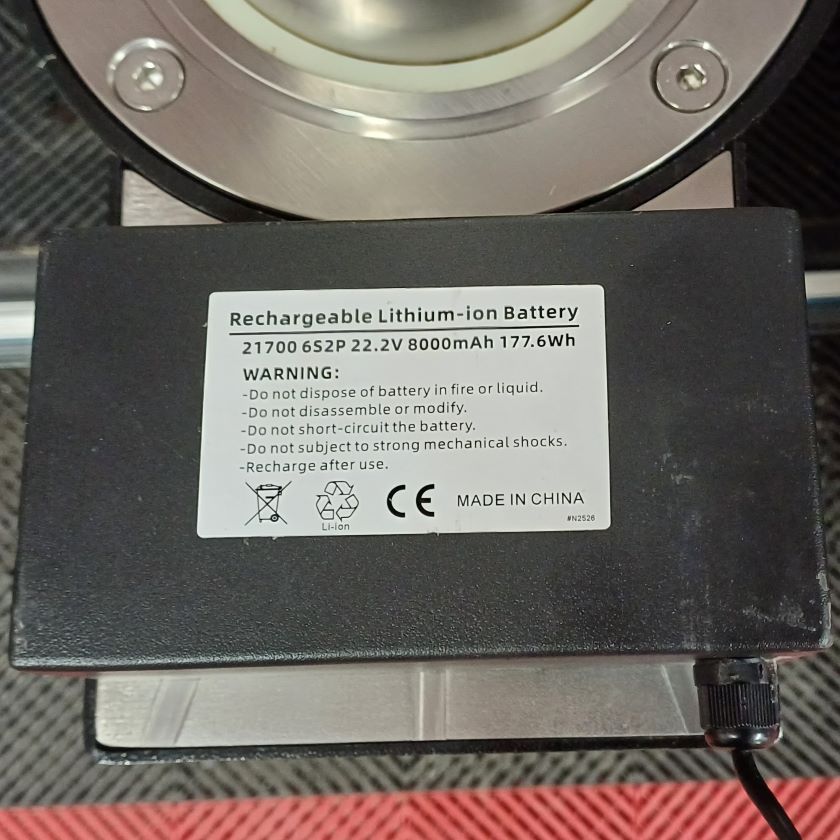

• 2 x 24v 8000 mAh Lithium-ion Rechargeable Batteries.
• 1 x Portable Battery Charger.
• 1-Year Warranty (2-year warranty available on request).
• Instruction on how to use and care for your bollard(s).

• Price applies to the delivery and installation of a single bollard.

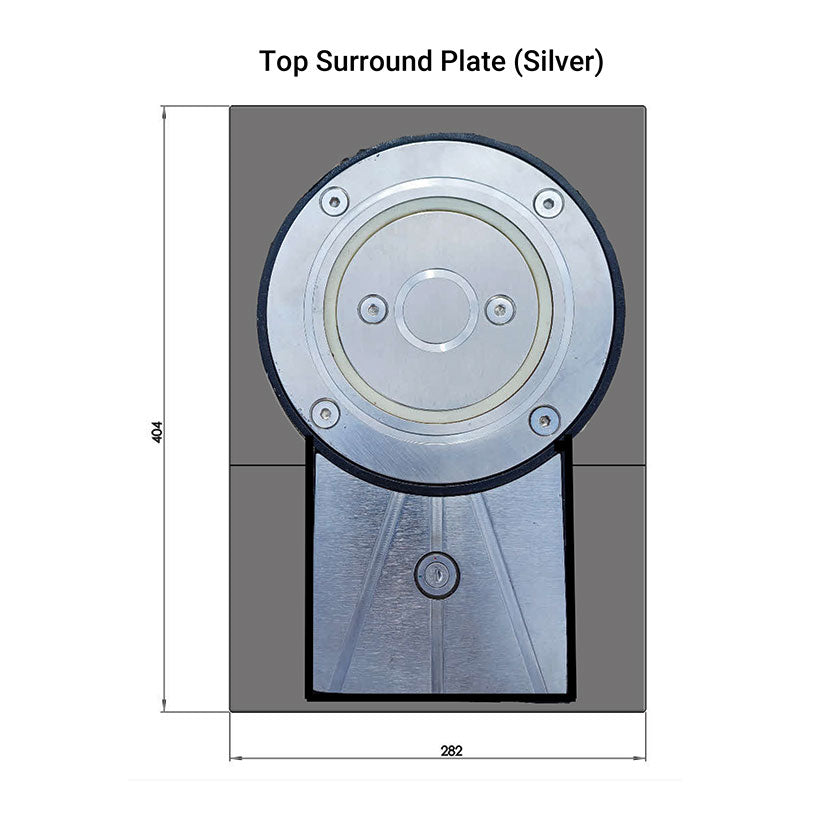

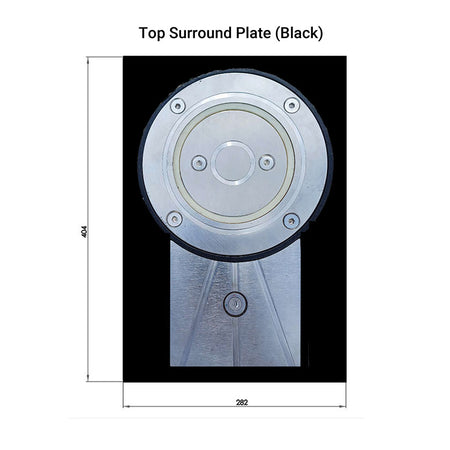

• Top surround plate in a Black or Silver polymer finish is available to order as an extra.

Downloads

• Guardian Wireless 600 Automatic Bollard Data Sheet (PDF)

Guarantees

• 1-Year Warranty (2-year warranty available on request).
• 30-day returns/exchange.


Overview

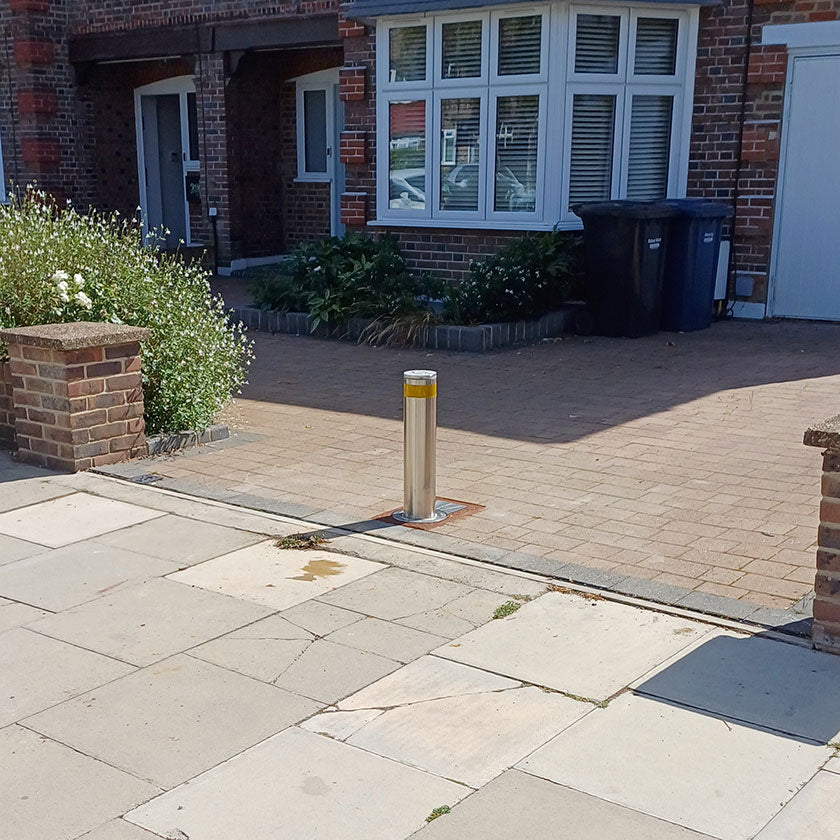

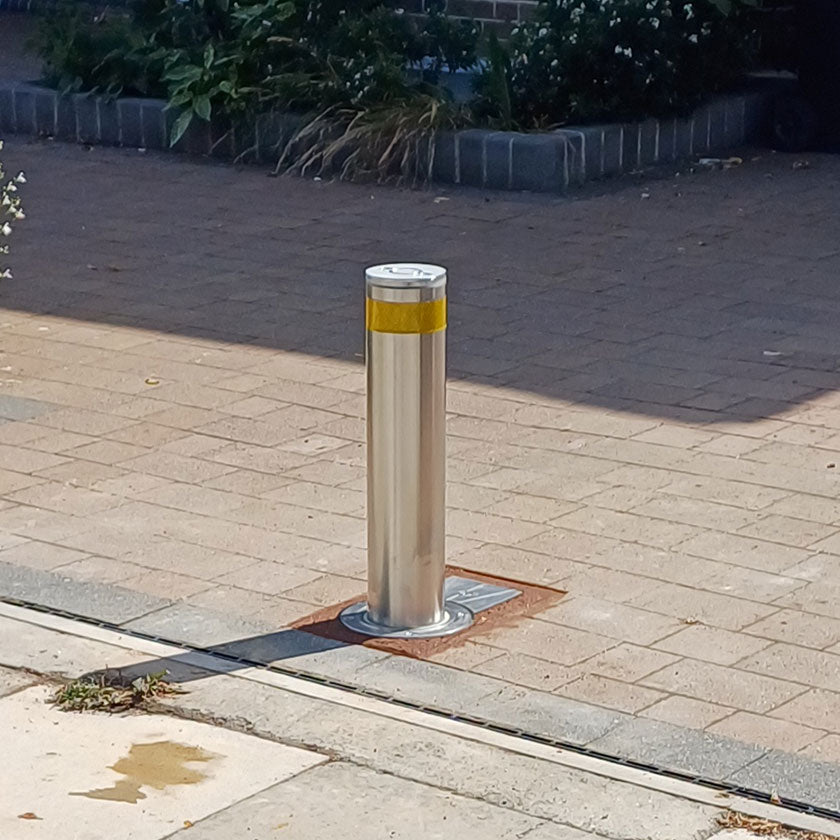

• Designed for all driveway security and reserved car parking applications.
• Requires no trenching or hard wiring to a power supply.
• Battery-powered, supplied with 2 x 24v 8000-mAh re-chargeable batteries.
• Supplied ready to use with no configuration or set-up required.

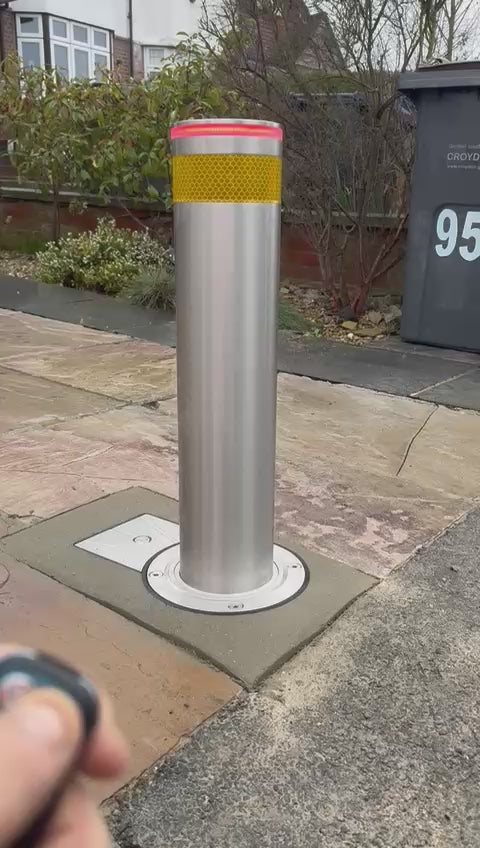

• Will only rise or lower with the press of the remote controls provided.
• Additional remote controls are available to order.
• Remote controls can operate an unlimited number of bollards.
• Each bollard can have up to 15 remote controls.
• Multiple bollards can be controlled independently or simultaneously.
• 8-second rise/lower time.

• 25-30 lin mtr remote control operating range (direct line of sight).
• Electro-Mechanical motor.

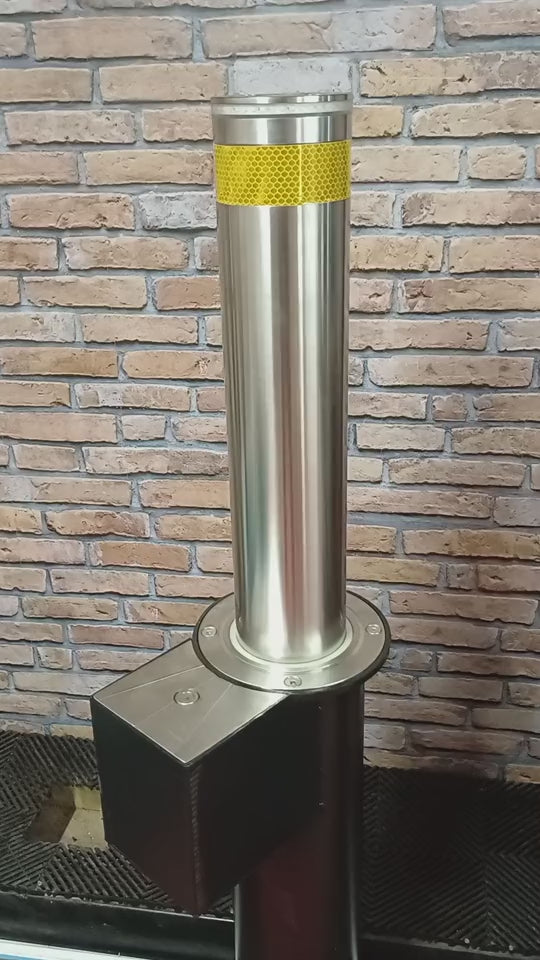

• Fully waterproof - IP 68 protection rating (watch our submerged in water video).
• 24v 8000 mAh power supply.
• Approx 8-hour battery charge required for each battery.
• We recommend each battery is re-charged and swapped over at least once a month (battery cycling).

• Battery life 3-5 years (when correct monthly cycling sequence is performed).
• -35 C to + 60 C operating temperature.

Manufacture

• Mild steel manufactured to BS1440.
• 52kg overall product weight.

DIY Installation

• Please Note: Due to the lithium-ion battery contents of the package and potential damage with a courier, this bollard is only available to order with delivery and installation included.

Our Installation Service

• Price includes the delivery and installation of your bollard(s), surface reinstatement, and spoil removal from the site.
• No site survey is required.
• Supplied as a ready-to-install wireless automatic bollard.
• Requires no hard wiring or trenching to a power supply.
• Remote controls are supplied ready to use.
• Batteries are supplied fully charged on delivery.
• Requires 950mm excavation depth (we add 150mm for drainage).

FAQ's

Q:- Is the bollard waterproof?

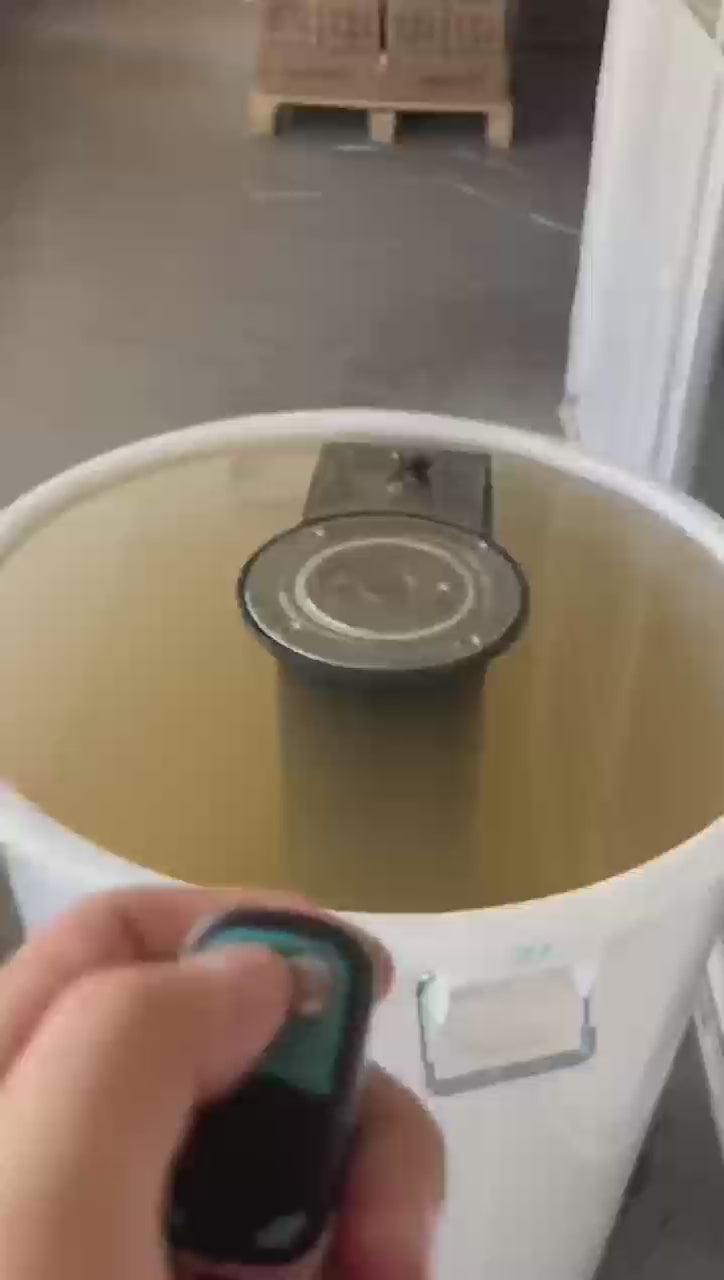

A:- Yes, the bollard and all internal components are absolutely waterproof. You may like to watch the video above to see how the bollard performs when fully submerged in a tank of water.

Q:- How many bollards can I control with each remote control?

A:- You can control an unlimited quantity of bollards with each remote control.

Q:- How many remote controls can I have?

A:- You can have up to 8 remote controls for each bollard.

Q:- Can the signal from the remote control be cloned?

A:- No. The remote control signal can not be cloned as it works on a rolling code basis.

Q:- Does the bollard have LED lights around the crown?

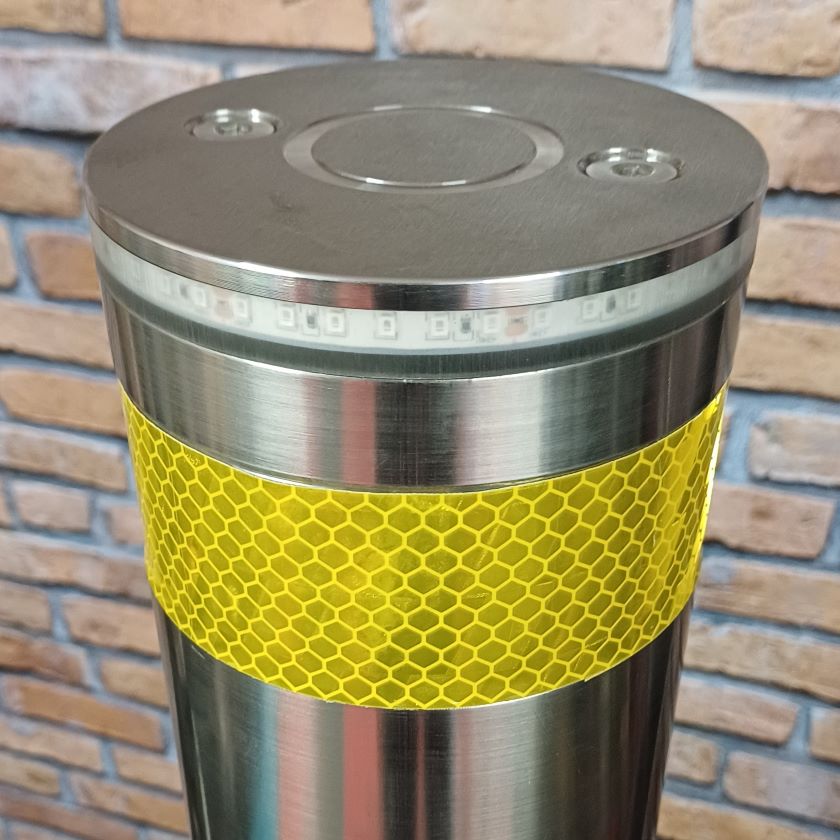

A:- Yes, this bollard has a full LED light crown which will flash when the bollard is rising and lowering. This eliminates power drain from the battery.

Q:- Will the bollard drop if the battery is disconnected?

A:- No. The bollard has a built-in safety lock, so if the battery is disconnected, the bollard will remain upright until power is restored from the battery.

Q:- Can I purchase an additional battery in the future?

A:- Yes, if you ever need a 3rd battery, we hold stock of all accessories and replacement parts.

Q:- How will I know when to change the battery?

A: We recommend changing the battery when you notice the bollard is slower than usual to rise or lower.

Q:- How do I change the battery?

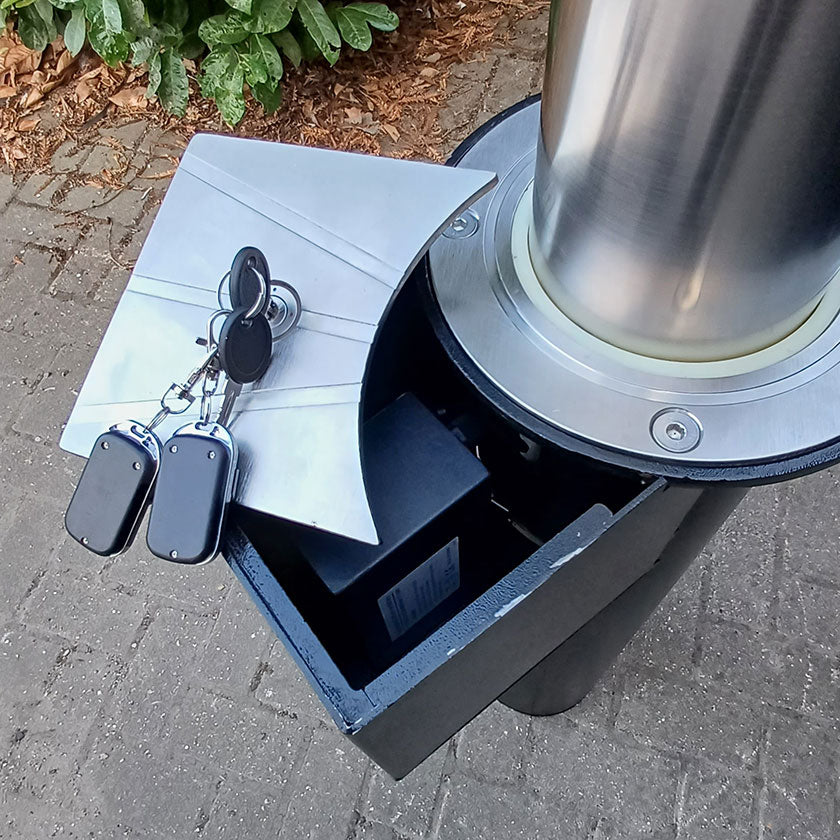

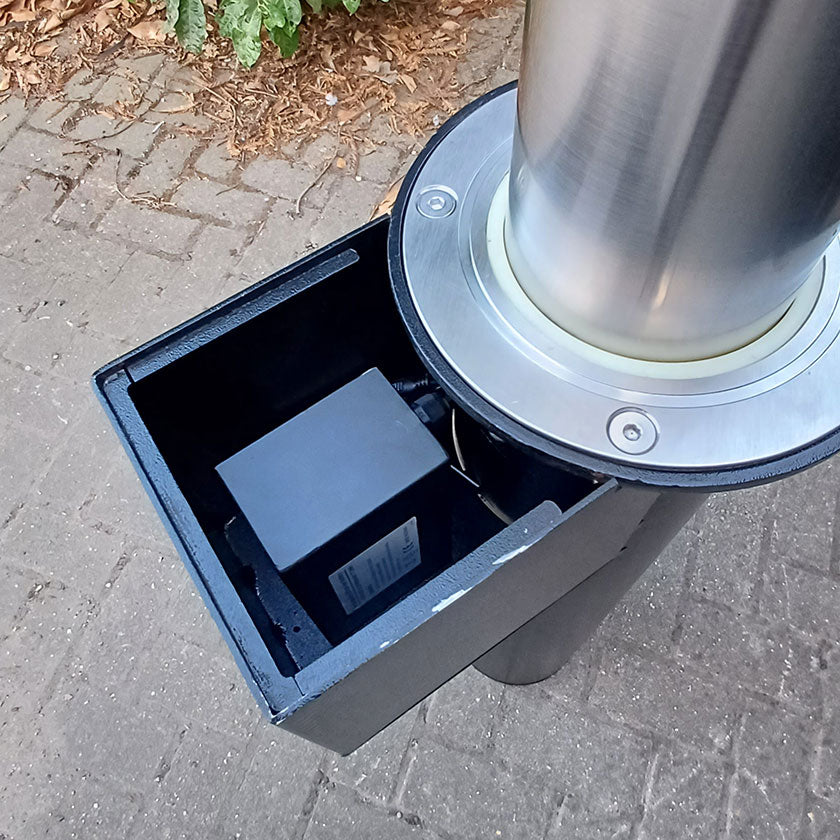

A:- Simply unlock the battery enclosure with the keys supplied, disconnect the plunge connector, remove the battery, and insert the fully charged spare battery supplied with your bollard.

Q:- How long does it take to charge the batteries?

A:- It takes around 8 hours to fully charge each battery. The portable charger supplied has a Red/Green indicator to let you know when the battery is fully charged.

Q:- How long will a fully charged battery last?

A:- Lithium-ion batteries can go many months without being re-charged, although power drain from the battery will depend on how many times you rise and lower your bollard(s).

Q:- What is the best practice?

A:-To ensure the long term performance of your batteries, we recommend swapping the battery over with a fully charged battery at least once a month.

Q:- Can I leave the battery on charge overnight?

A: No. It is not safe or recommended to leave a Lithium-ion battery on charge overnight, as it can lead to overcharging, battery degradation, and increased fire risk, and always unplug the charger once charging is complete.

Q:- What is the best way to charge the battery?

A: Cycling is the best way to charge and care for the batteries, and should be carried out once a month. This involves a full charge, a full discharge, and then a re-charge of up to 60% of the capacity for each battery.
