Home / All Products / BFT - 3.0 Mtr Maxima Ultra Automatic Arm Barrier Kit

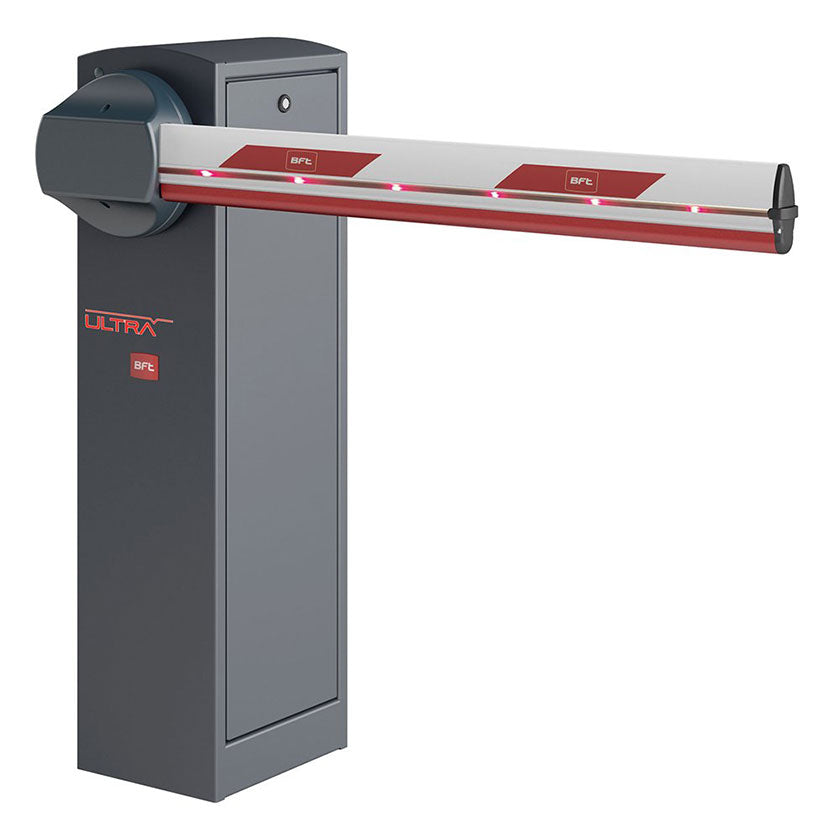

BFT - Maxima Ultra 3.0 BT automatic barrier

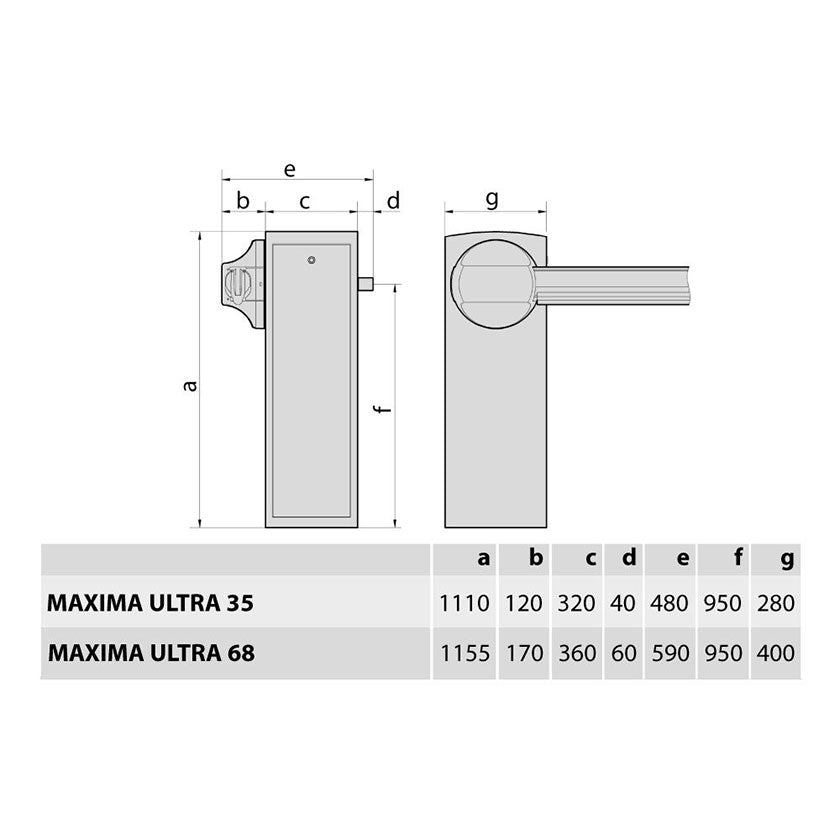

BFT - Maxima Ultra 3.0 BT automatic barrier specification
BFT - Maxima Ultra 3.0 BT automatic barrier
BFT - Maxima Ultra 3.0 BT automatic barrier specification

BFT - 3.0 Mtr Maxima Ultra Automatic Arm Barrier Kit
£2,650.00 inc vat

Premium automatic barrier with a rapid open and closing time, designed for high-intensity use in car parks, industrial sites and motorway tolls.

  • Suitable for drive-through gaps of up to 3mtrs.
  • Designed for high-intensity use (20,000 openings per day).
  • Rapid 0.7 second rising and closing time.
  • RAL 7016 Anthracite Grey cabinet.
  • Aluminium boom.
  • Surface-mounted ready to install barrier.

What's Included
  • 1 x Aluminium surface mounted cabinet.
  • 1 x Integrated CSB Xtreme control panel and inverter.
  • 1 x 3mtr aluminium boom.
  • 1 x Rubber buffer.
  • 1 x Manual release key.
  • 2 x Handheld remote controls.
  • (Fixed or swinging boom rest is not required).
Overview
  • Asynchronous three-phase motor.
  • Use: High intensity - 20,000 openings per day.
  • Anti-vandal protection with connecting rod crank system.
  • Rising time: 0.7 seconds.
  • Lowering time: 0.7 seconds.
  • Boom Length: 1.7 - 3.0 mtrs (can be cut to length).
  • Operating range: 15 lin mtrs (with remote control).
  • Lock: Integral (includes manual release key).
  • Encoder Technology.
  • Electronic limit switches.
  • Adjustable slow-down time.
  • Soft opening or closing.
  • Power supply 230Vac 50Hz.
  • Motor power supply 230v.
  • IP 54 protection rating.
  • -30 C to +6 C operating temperature.
  • Mild steel components manufactured to BS1440.
  • All parts hot-dipped galvanised to BS EN ISO 1461 (2009).
  • 56kg overall product weight.
  • Compatible with the U-Link communication protocol.
  • Allows integration of Parking & Building Management systems.
  • Guarantee: 2 Years.
  • Made in Italy (BFT - Europe).
Availability & Delivery
  • Supply Only: In Stock - delivery within 4 - 5 days.
  • Supply & Install: Service unavailable until January 2020.
  • Free UK mainland delivery with 30-day returns or exchange.
Installation
  • Requires independent 230V 5amp power supply.
  • Surface-mounted (bolt down).
  • Fixings: 4 x 16mm ground anchors required (see product add-ons).
  • 18mm drill bit required (see product add-ons).
  • Suitable for flat ground only.
  • All hard surfaces.
Accessories

A large number of optional accessories are available that will allow you to customize and build your bespoke system (see product add-ons) or click here to shop automation accesories.
