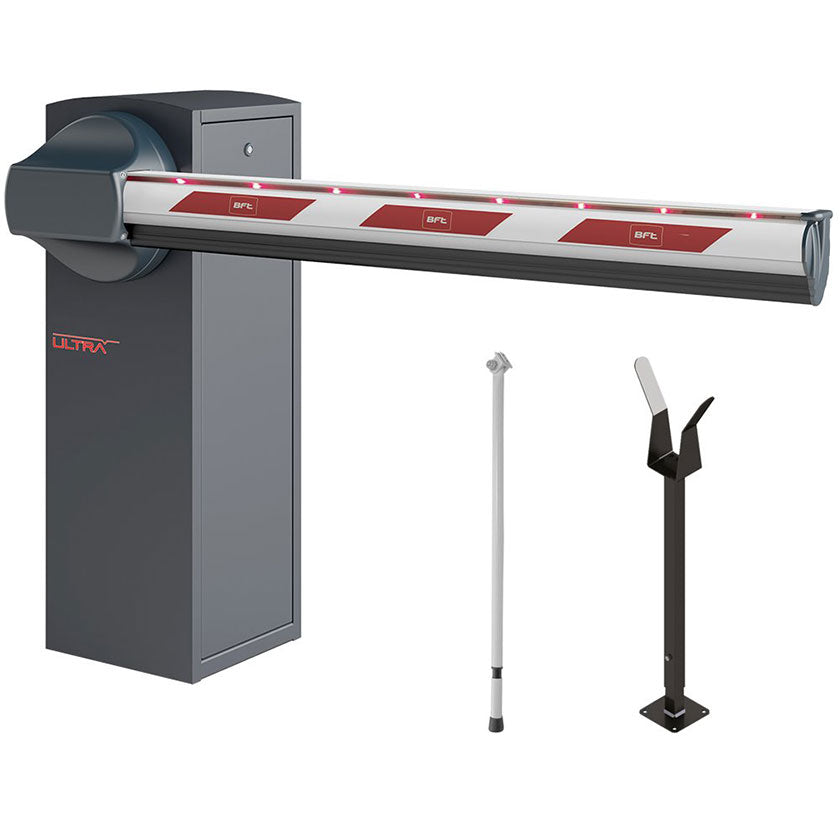

BFT - 8.0 Mtr Maxima Ultra

High-intensity automatic arm barrier kit designed for use in car parks, industrial sites, and motorway tolls.

• Suitable for drive-through gaps of up to 8mtrs.
• Designed for intensive use (3,000 openings per day).
• Rapid 4.5 - 6.0 second rising and closing time.
• RAL 7016 Anthracite Grey cabinet.
• Includes Aluminium boom with a fixed or swinging rest.
• Surface-mounted ready to install barrier.

What's included in the price?

• 1 x Aluminium surface mounted cabinet.
• 1 x Integrated CSB Xtreme control panel and inverter.
• 1 x 8mtr aluminium boom.
• 1 x Fixed or swinging boom rest.
• 1 x Rubber buffer.
• 1 x Manual release key.
• 2 x Handheld remote controls
• Our own easy to follow installation and set up instructions (on request).
• Technical support if and when you need it.
• Free UK mainland delivery.
• 30-day returns or exchange.

Downloads

• Maxima Ultra Data Sheet.

Guarantees

• 1-Year Parts Guarantee (supply only).
• 2-year Parts & Labour guarantee (supply & installation).
• 30-day returns or exchange.


Overview

• Asynchronous three-phase motor.
• Use: Intensive - 3,000 openings per day.
• Anti-vandal protection with connecting rod crank system.
• Optional flashing light on the crown of the cabinet.
• Rising time: 4.5 seconds.
• Lowering time: 6.0 seconds.
• Boom Length: 6.0 - 8.0 mtrs (can be cut to length).
• Operating range: 15 lin mtrs (with remote control).
• Lock: Integral (includes manual release key).
• Encoder Technology.
• Electronic limit switches.
• Adjustable slow-down time.
• Soft opening or closing.
• Power supply 230Vac 50Hz.
• Motor power supply 230v.
• IP 54 protection rating.
• -30 C to +6 C operating temperature.
• Mild steel components manufactured to BS1440.
• All parts hot-dipped galvanised to BS EN ISO 1461 (2009).
• 64kg overall product weight.
• Compatible with the U-Link communication protocol.

• Made in Italy (BFT - Europe).

System Accessories.

• Shop Automation Accessories to build your bespoke system.

DIY Installation

• Requires independent 230V 5amp power supply.
• Surface-mounted (bolt down) installation.
• Fixings: 4 x 16mm ground anchors required.
• The built-in control panel simply connects to the power supply.
• Suitable for flat ground only.
• All hard surfaces.
