BFT - Dampy 700/SS

Description

Large stainless steel semi-automatic rising bollard for domestic driveway and commercial access control applications where convenience and ease of use is more important than security.  Can also be integrated with our range of automatic rising bollards.

• 220mm diameter.
• 700mm raised height.
• Pull up weight 0 kg.
• 3mm stainless steel gauge wall.

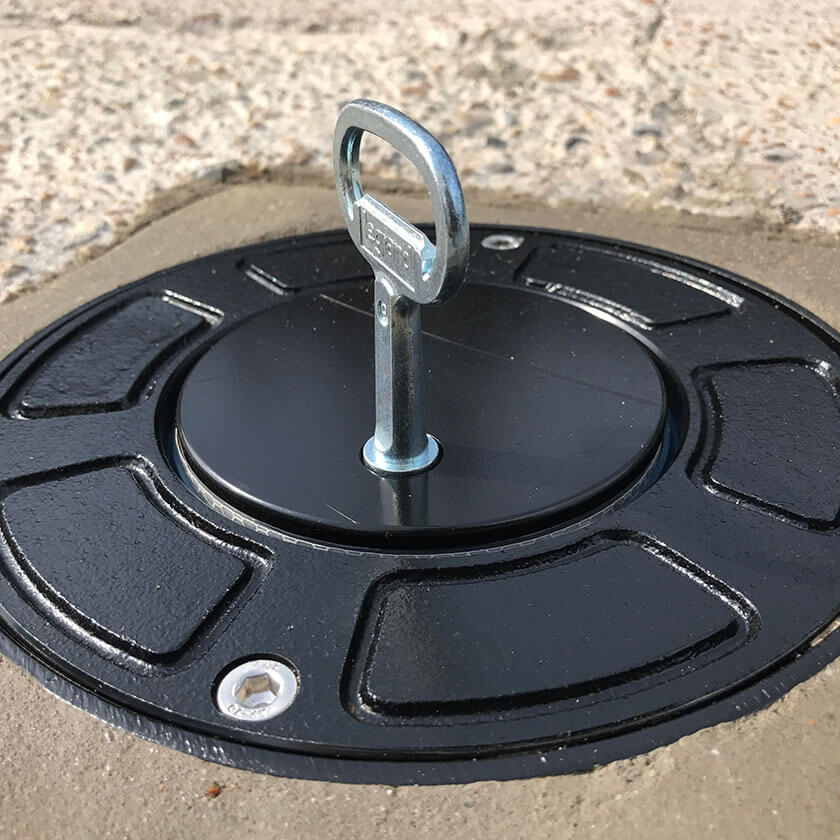

• Integral lock (1 locking tool supplied).
• 304-grade Stainless Steel finish.

Downloads (PDFs)

• Bollard Data Sheet.
• Important Installation Notice.

Guarantees

• 30-day returns or exchange.
• 1-year manufacturer's guarantee.

Overview

• Semi-automatic rising bollard with internal gas spring.
• No wiring or 230V power supply required.
• No manual lifting weight required.
• Rapid rising, turn the valve and the bollard will rise.
• Automatically locks into the raised and lowered position.
• Mild steel components manufactured to BS1440.
• All parts hot dipped galvanised to BS EN ISO 1461 (2009).
• 304-grade brushed stainless steel finish - 4mm stainless steel gauge.
• 54kg overall product weight.
• 1 Year guarantee.
• Made in Italy (BFT - Europe).

Installation

• XL Semi-Automatic - Sub-surface (to be concreted in below ground).
• Foundation Box: 790mm x 240mm x 5mm gauge galvanised steel.
• Depth required: 940mm (includes 150mm for drainage).
• Suitable for flat or sloping ground.
• All hard and soft surfaces.
• High water table areas may experience slow water drain-off.
• Not suitable for sites prone to regular flooding.
• Please Note: When lowered, this bollard should not be positioned in the tyre path of passing vehicles.
