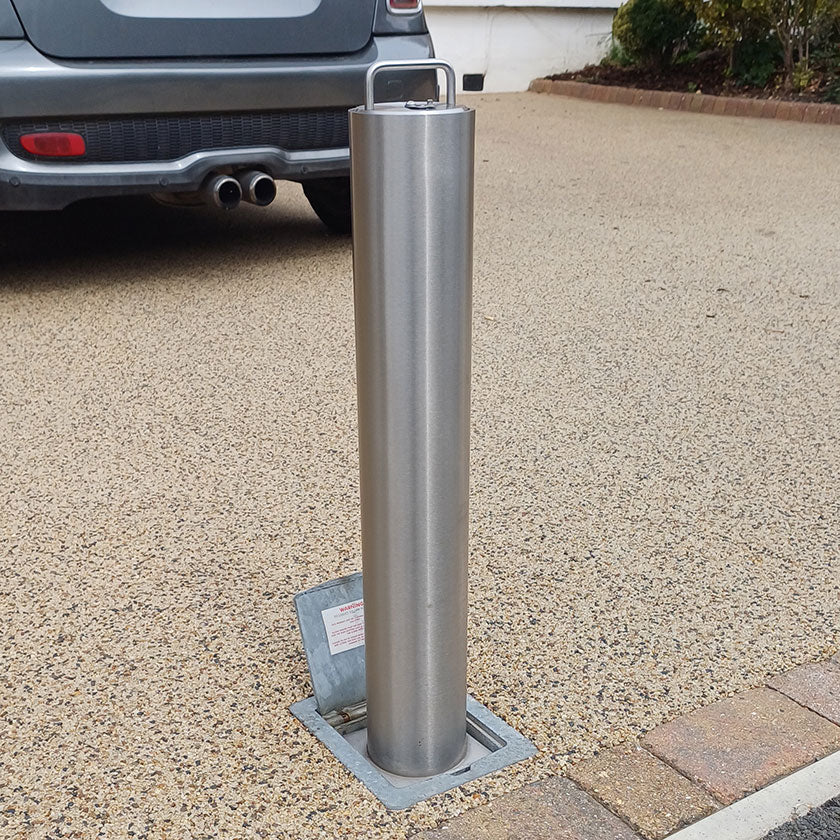

LA-114 Stainless Steel Lift Assist Telescopic Bollard

A stunning 316-grade stainless steel lift-assisted telescopic bollard, designed with 70% less lifting weight for easier lifting and lowering and built with the 'Award-winning' high-security integral top lock'.

Engineered for any contemporary high-security domestic or commercial access control application that needs a retractable bollard with a minimal manual lifting weight for the user and the strength to protect property, buildings, and vehicles from an attempted theft or ram-raid attack.

Specification

• 114mm bollard diameter.
• 670mm raised height.
• 3kg pull up weight.
• 3mm stainless steel wall + 3mm steel insert.
• 'Award Winning' high-security 10 pin top lock.
• 2 keys supplied per bollard (more keys can be ordered below).
• 316-grade brushed stainless steel finish.
• LA-114-670 stainless steel data sheet (PDF)

Guarantees

• 30-day returns or exchange.
• 1-year manufacturer's guarantee.
• Accredited to the 'Secured by Design' Police initiative.
• Manufactured to meet the 'Sold Secure' industry standard.

• Lift assisted to reduce the manual lifting weight by up to 70%.
• Anti-ram raid spec, 3mm stainless steel wall + 3mm steel insert.
• Award-winning high-security 10-pin push-button top lock.
• Supplied with 2 coded keys (see product add-ons to order more).
• Keys can't be copied or the lock picked or drilled.
• Lockable in the raised and lowered position.
• Fixed stainless steel handle.
• Sliding cover plate to keep the lock clear of dirt and debris.
• Heavy-duty hinged cover plate.
• Accredited to the 'Secured by Design' Police initiative.
• 'Sold Secure' approved.
• 316-grade stainless steel finish.
• Mild steel components manufactured to BS1440.
• All parts hot-dipped galvanised to BS EN ISO 1461 (2009).
• 53kg overall product weight.
• 1 Year manufacturers guarantee.
• Made in Britain.
• Built to last - representing the very best of British design and engineering.

Manufacture

• Represents the very best of British design and engineering.
• Hand-built to order here in the UK.
• 960mm x 170mm x 5mm galvanized steel outer casing.
• Mild steel components manufactured to BS1440.
• All parts hot-dipped galvanized to BS EN ISO 1461 (2009).
• 55kg overall product weight.

Maintenance

• To help keep the 10pin top-lock in tip-top condition, we recommend the regular use of our specially formulated lubricating lock oil.
• This will ensure the smooth operation of your bollard for many years to come.
• Keep the base of the bollard clear of dirt, debris, and leaves, etc.
• Cleaning the retractable inner bollard.

Ground Conditions

• Suitable for flat or sloping ground and any hard or soft surface.
• Not recommended for sites prone to regular deep water flooding.
• Areas with a high water table may experience slower water dispersion.

DIY Installation

• Excavation depth required: 1110mm (includes 150mm for drainage).
• Tools required - CAT scanner, stone cutting saw, concrete breaker, post borer, long-arm graft, shovel, spirit level, trowel, hand tools, and a wheelbarrow.
• Materials required - 20mm shingle, 10mm shingle, ballast, sharp sand, rapid set cement, cement dye (optional), mortar plasticiser, and water.
• Approx time to install - 1-2 hours (per bollard).
• DIY installation guide (PDF)

We can install this heavy-duty bollard for £190 + vat (£228.00 inc vat).

• Price applies to the installation of a single bollard and includes the all-important cable avoidance scan (CAT scan), road tolls, fuel, alignment, excavation, installation, materials, surface reinstatement, and spoil removal from the site.
• Your installer's vehicle is fully equipped and will carry the necessary tools to complete the work. Your installer will also provide their own electricity and water supply.
• Discounts are available for multiple installations at the same location (see our 'Buy More - Save More' rates above).
• More details about our installation service

Ordering your installation(s)

• To have one of our experienced, fully insured operatives install your bollard(s) simply 'ADD INSTALLATION' to your order.
• You will then be allocated an installer, and your goods will be manufactured and delivered to you within the estimated delivery date shown above.
• Once you receive your goods, simply contact your allocated installer to arrange an installation date that we guarantee will be carried out within the estimated installation date shown above.
• The postcode areas we cover
