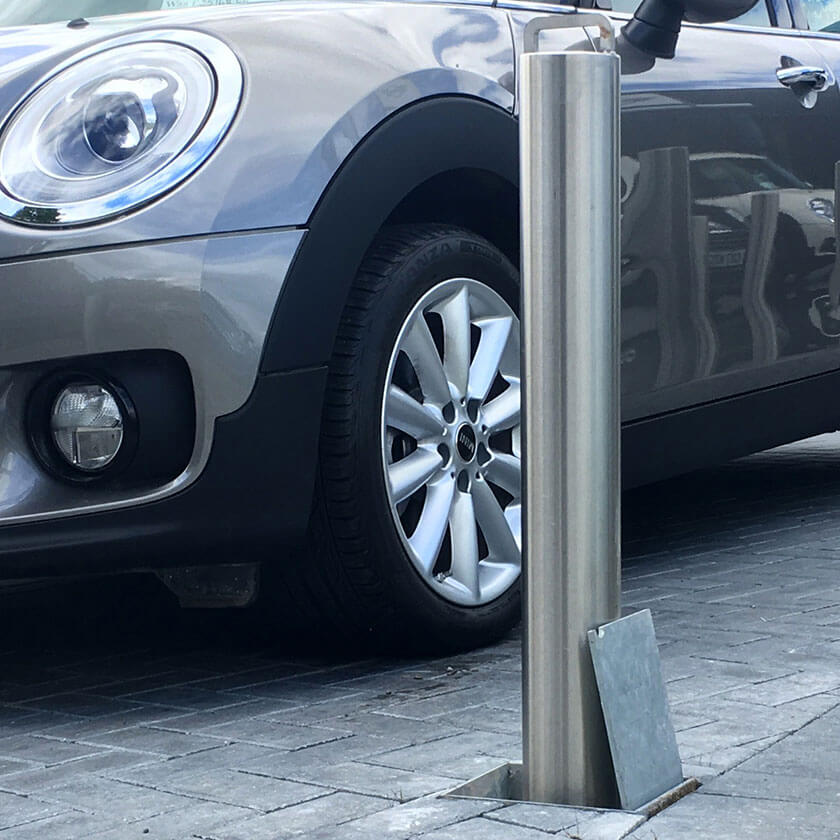

GL900 Lift Assist Telescopic Bollard

Our largest lift-assisted stainless steel telescopic bollard, designed and built for any high-security domestic driveway or commercial access control application to secure and protect vehicles, property, and buildings from an attempted theft or ram raid attack.

Specification

  • Choice of 139mm or 168mm bollard diameters.
  • 900mm raised height.
  • 6-10kg pull up weight.
  • 2mm gauge stainless steel wall.
  • 7 pin push button top lock.
  • 2 keys supplied per bollard (more keys can be ordered below).
  • 316-grade brushed stainless steel finish.
  • GL900 lift-assist bollard data sheet (PDF)
  • Designed for all residential and commercial high-security, access control applications.
  • High-security, strength, and protection on your driveway for all vehicle types including 4x4's, vans, trailers, and caravans, etc.
  • High level of resistance against an attempted ram raid attack.
  • 70% less lifting and lowering weight.
  • Easy to raise and lower requiring minimal manual effort.

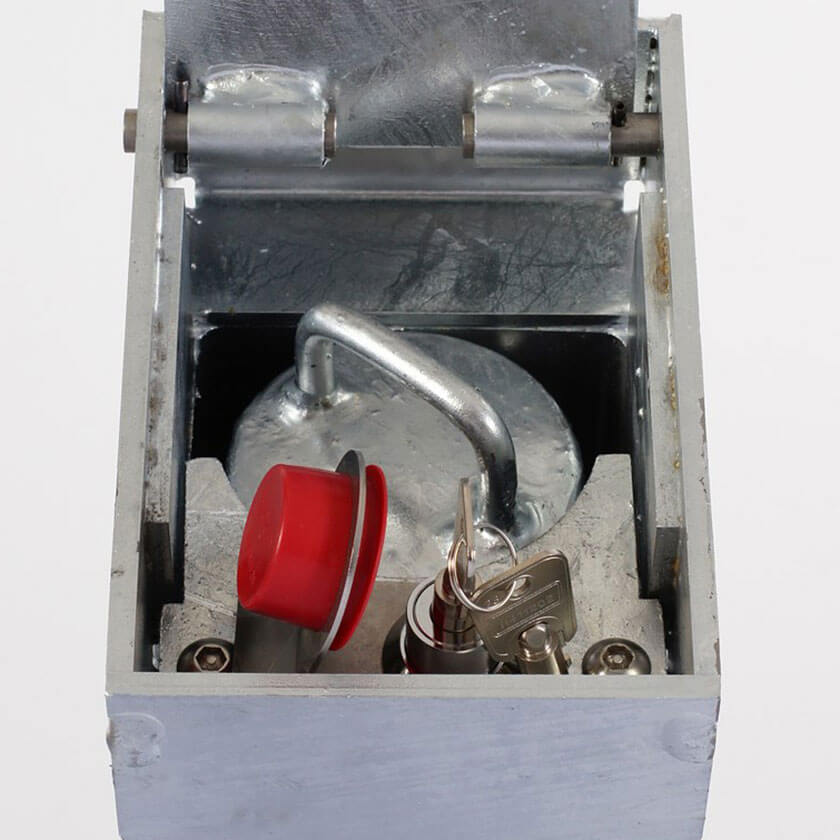

  • Inserted with a 7 pin push-button lock at the base of the bollard.
  • Unique key & lock number allocated to your bollard(s).
  • Keys can't be copied or the lock picked or drilled.

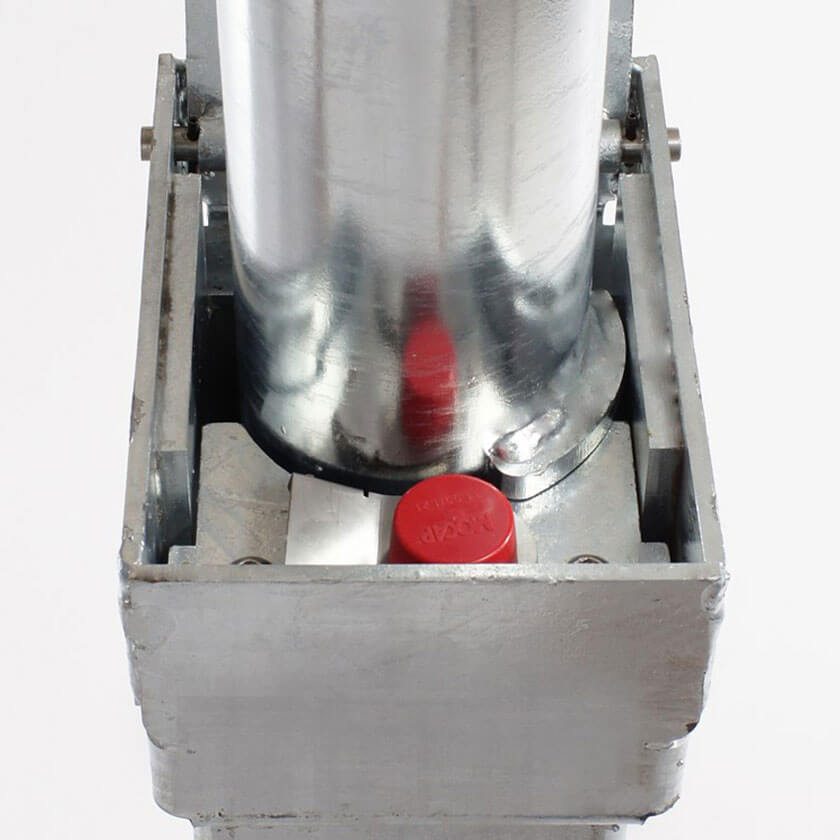

  • Plastic cover plate to protect the lock.
  • Fixed stainless steel lifting handle.
  • Lockable in the raised and lowered position.

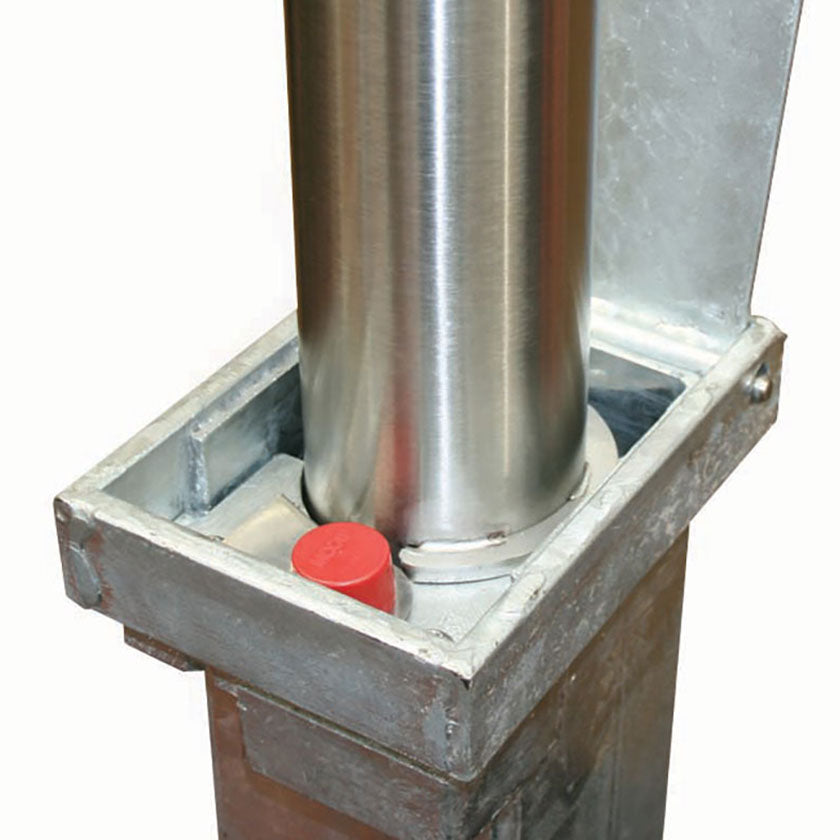

  • Heavy-duty hinged lid to protect the bollard when lowered.
  • Fully serviceable and replaceable components.
  • Galvanised steel hinged cover plate.

Guarantees

  • 30-day returns or exchange.
  • 1-year manufacturers guarantee.

Manufacture

  • Represents the very best of British design and engineering.
  • Hand-built to order here in the UK.

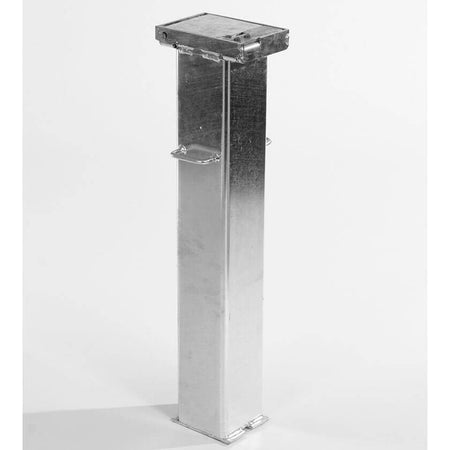

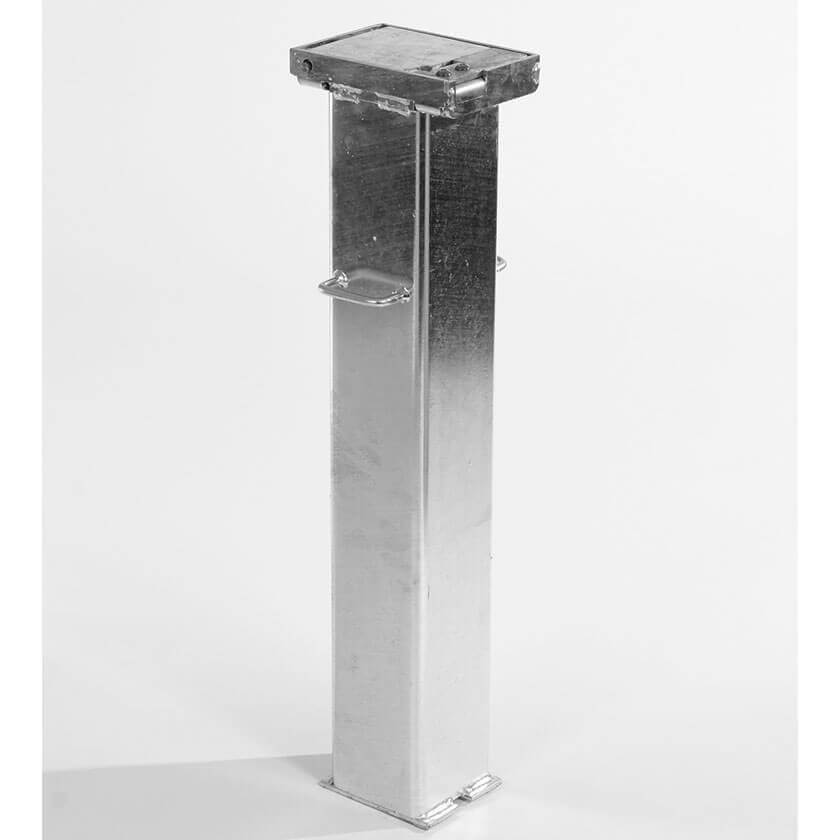

  • 139mm diameter: 1250mm x 190mm x 3mm gauge galvanised steel outer casing.
  • 168mm diameter - 1250mm x 225mm x 3mm gauge galvanised steel outer casing.
  • Mild steel components manufactured to BS1440.
  • All parts hot-dipped galvanized to BS EN ISO 1461 (2009).
  • 62 - 68kg overall product weight.

    Maintenance

    • To help keep the 7pin lock in tip-top condition, we recommend the regular use of our specially formulated lubricating lock oil.
    • This will ensure the smooth operation of your bollard for many years to come.
    • Keep the base of the bollard clear of dirt, debris, and leaves, etc.
    • Cleaning the retractable inner bollard.

        Ground Conditions

        • Suitable for flat or sloping ground and any hard or soft surface.
        • Not recommended for sites prone to regular deep water flooding.
        • Areas with a high water table may experience slower water dispersion.

        DIY Installation

        • Excavation depth required: 1400mm (includes 150mm for drainage).
        • Tools required - CAT scanner, stone cutting saw, concrete breaker, post borer, long-arm graft, shovel, spirit level, trowel, hand tools, and a wheelbarrow.
        • Materials required - 20mm shingle, 10mm shingle, ballast, sharp sand, rapid set cement, cement dye (optional), mortar plasticiser, and water.
        • Approx time to install - 1-2 hours (per bollard).
        • DIY installation guide (PDF)

        We can install this heavy-duty bollard for £210 + vat (£252.00 inc vat).

        • Price applies to the installation of a single bollard and includes the all-important cable avoidance scan (CAT scan), road tolls, fuel, alignment, excavation, installation, materials, surface reinstatement, and spoil removal from the site.
        • Your installer's vehicle is fully equipped and will carry the necessary tools to complete the work. Your installer will also provide their own electricity and water supply.
        • Discounts are available for multiple installations at the same location (see our 'Buy More - Save More' rates above).
        • More details about our installation service

          Ordering your installation(s)

          • To have one of our experienced, fully insured operatives install your bollard(s) simply 'ADD INSTALLATION' to your order.
          • You will then be allocated an installer, and your goods will be manufactured and delivered to you within the estimated delivery date shown above.
          • Once you receive your goods, simply contact your allocated installer to arrange an installation date that we guarantee will be carried out within the estimated installation date shown above.
          • The postcode areas we cover
