BFT - Pillar-B 800 (PAS 68)

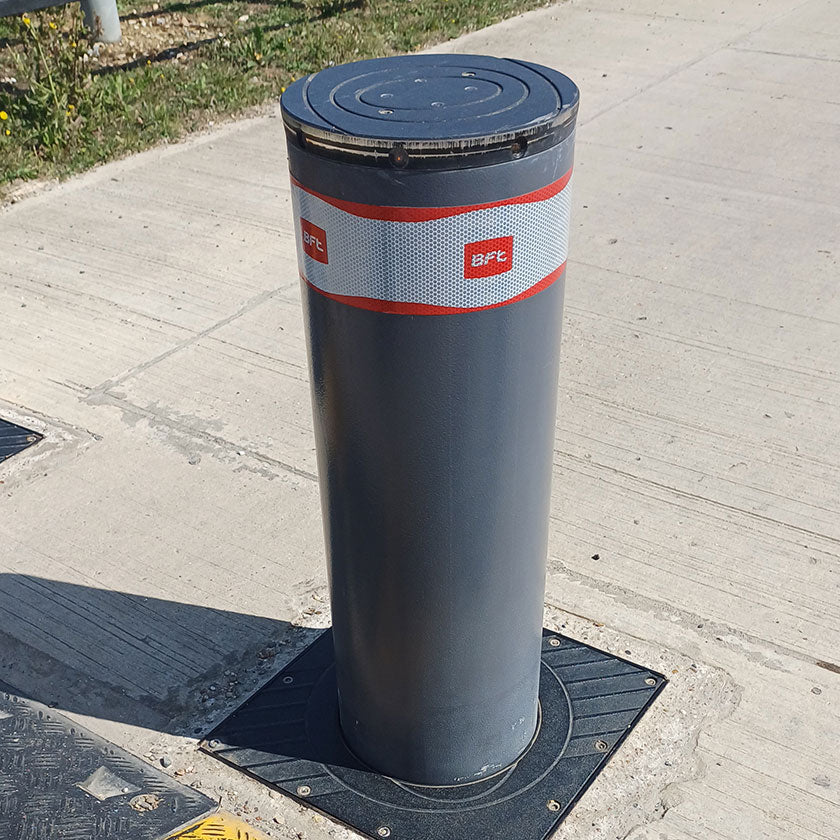

The Pillar B 800 - hydraulic automatic rising bollard, engineered with a heavy-duty 10mm steel gauge wall, and certified by an independent body according to industry-standard PAS 68:2010 D/7500/50/N2 (Crash Test Simulation).

Designed and built in Italy to the highest industry standard for prestigious private driveways and sensitive public locations to provide rapid and highly effective automated access control to protect vehicles, property, private roads, and buildings from an attempted theft, ram raid, or terrorist attack.

Bollard Specification

  • 275mm diameter.
  • 800mm raised height.
  • 10mm gauge steel wall.
  • Anthracite Grey - RAL 7015 finish.
  • Integral 12 x LED light crown (can be disabled).
  • Integral acoustic warning signal (can be disabled).
  • Hydraulic oil-sealed motor.
  • Price shown includes your bollard(s), 1 control panel & 2 remote controls.

Guarantees

  • 30-day returns or exchange.
  • 2-year manufacturer's guarantee provided with every system.

Downloads

  • Designed for all residential and commercial access control applications.
  • Suitable for intensive use (up to 3000 movements per day).
  • Control up to 4 bollards on the same control panel.
  • 6.5-second rising time & 6.5-second lowering time.
  • Standard Version (drops on power cut) or Security Version (stays raised).
  • 25mtr remote control operating range (direct line of sight).
  • AC Hydraulic motor.
  • Power supply: 230Vac 50Hz.
  • Motor supply: 500W.
  • IP 67 protection rating.
  • -30 C to + 60 C operating temperature.
  • Integrated heating element.
  • 40,000 joules impact resistance.
  • 250,000 joules break-in proof.

    Accessories

      Manufacture

      • Made in Italy (BFT - Europe).
      • PAS 68:2010 D/7500/50/N2 (Crash Test Simulation).
      • Mild steel manufactured to BS1440.
      • Galvanized to BS EN ISO 1461 (2009).
      • Powder-coated Anthracite Grey RAL 7015.
      • 170kg overall product weight.
      • Supplied as a complete ready to install system.
      • 230V - 5amp RCD protected power supply required for the control panel.
      • 9-10 lin mtrs of color-coded cables pre-wired to each bollard.
      • Cables must be routed back to where you mount the control panel.
      • Simply connect the cables to the control panel and configure the system.
      • 1060mm deep x 354mm square x 10mm gauge foundation box.
      • 1310mm excavation depth required (includes 250mm for drainage).
      • Technical help and support available to all our customers.
      • Our own easy to follow configuration guide is available upon request.

      Want us to install your system?

      Simply complete and submit the 'Request Installation Quote' form above, and we will reply to you within 24 hours with a quotation.

        Q:- Does the bollard automatically drop if there is a power cut?

        A:- You can order this bollard in 2 versions. The 'Security Version' (fail secure) means the bollard will stay up during a power cut, while the 'Standard Version' (fail-safe) means the bollard will automatically drop.

        Q:- Can the bollard be lowered with a release key during a power cut?

        A:- The 'Security Version' (fail secure) can be dropped manually with the supplied release key.

        Q:- Does the bollard have a built-in sensor to stop it rising by accident?

        A:- This bollard has an adjustable obstacle sensor, although we recommend you install the 'Safety Proximity Loop Kit' accessory as an added precaution.

        Q:- How many remote controls can I have?

        A:- You can order as many 'Remote Controls' as you like.

        Q:- How many bollards can I connect to the control panel?

        A:- You can connect and control up to 4 bollards on the same system.

        Q:- Does the bollard have LED lights around the crown?

        A:- Yes, this bollard has 12 x LED lights built into the crown.

        Q:- What power supply do I need for the control panel?

        A:- You need a 5amp RCD protected power supply for the control panel.
