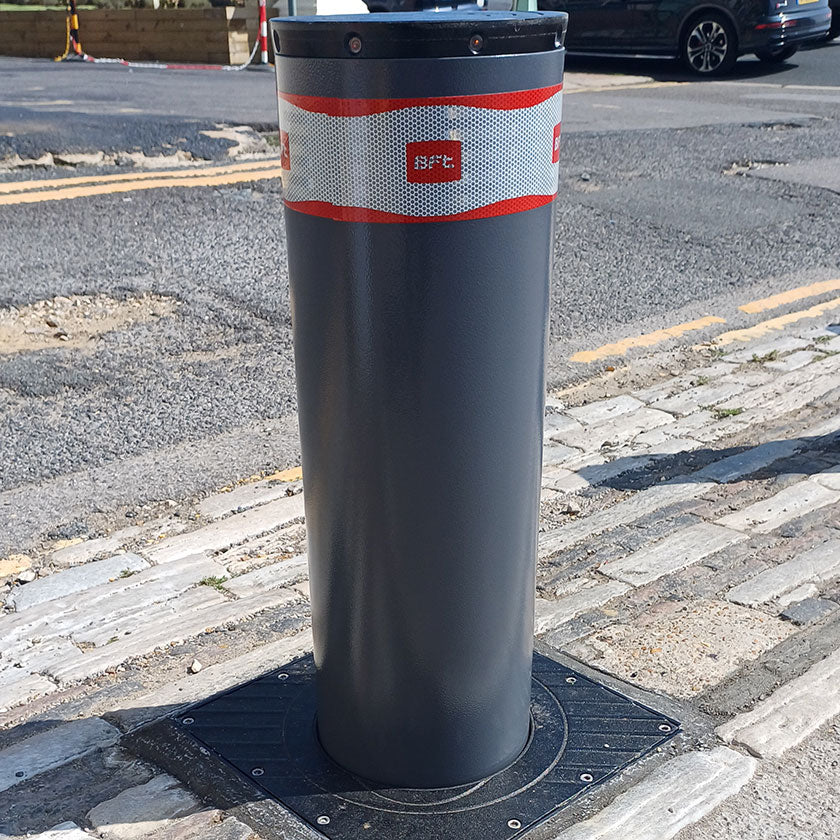

BFT - Pillar-B 800

The superb Pillar B 800 hydraulic automatic rising bollard, designed for intensive use on any prestigious private driveway or sensitive public location to provide rapid and highly effective automated access control to protect vehicles, property, private roads, perimeters, and buildings from an attempted theft or vehicle incursion.

Engineered in Italy to the highest industry standard with a bollard diameter of 275mm, this highly visible automatic bollard features a rapid 6.5-second opening and closing time, an integral LED light crown, and an acoustic warning signal to alert pedestrians and passers-by.

Bollard Specification

• 275mm diameter.
• 800mm raised height.
• 5mm steel gauge wall.
• Anthracite Grey - RAL 7015 finish.
• Integral 12 x LED light crown (can be disabled).
• Integral acoustic warning signal (can be disabled).
• Hydraulic oil-sealed motor.
• Price shown includes your bollard(s), 1 control panel & 2 remote controls.

Guarantees

• 1-year manufacturer's guarantee (supply only)
• 2-year manufacturer's guarantee (supply & installation)
• 30-day returns or exchange.

Downloads

• Pillar B 800 Automatic Bollard Data Sheet (PDF)
• Pillar B Instruction Manual (PDF)
• Perseo CBE Control Panel Manual (PDF)
• Important Installation Notice.

• Price shown includes your bollard(s), 1 control panel & 2 remote controls.
• Designed for all residential and commercial access control applications.

• Suitable for intensive use (up to 3000 movements per day).
• Control up to 4 bollards on the same control panel.
• 6-second rising time & 6-second lowering time.
• Standard Version (drops on power cut) or Security Version (stays raised).
• 25mtr remote control operating range (direct line of sight).
• Adjustable obstacle sensor.
• AC Hydraulic motor.
• Power supply: 230Vac 50Hz.
• Motor supply: 500W.
• IP 67 protection rating.
• -30 C to + 60 C operating temperature.
• Integrated heating element.
• 20,000 joules impact resistance.
• 250,000 joules break-in proof.
• Compatible with the U-Link communication protocol.

Accessories

• Shop extra Remote Controls.
• Shop GSM - dial in from a mobile phone (for up to 100 users).
• Shop Vehicle Detection Kit - prevents the accidental rising of your bollard(s).

• Shop Photo-Cells - wall or post mounted proximity sensors.
• Shop Keypad/Intercom - keypad/intercom entry.
• Shop All Accessories - see our complete range.

Manufacture

• Made in Italy (BFT - Europe).
• Mild steel manufactured to BS1440.
• Galvanized to BS EN ISO 1461 (2009).
• Powder-coated Anthracite Grey RAL 7015.
• 160kg overall product weight.

• Supplied as a complete ready to install system.
• 230V - 5amp RCD protected power supply required for the control panel.
• 9-10 lin mtrs of color-coded cables pre-wired to each bollard.
• Cables must be routed back to where you mount the control panel.
• Simply connect the cables to the control panel and configure the system.
• 1060mm deep x 354mm square x 5mm gauge foundation box.
• 1310mm excavation depth required (includes 250mm for drainage).
• Technical help and support available to all our customers.
• Our own easy to follow configuration guide is available upon request.

Q:- Does the bollard automatically drop if there is a power cut?

A:- You can order this bollard in 2 versions. The 'Security Version' (fail secure) means the bollard will stay up during a power cut, while the 'Standard Version' (fail-safe) means the bollard will automatically drop.

Q:- Can the bollard be lowered with a release key during a power cut?

A:- The 'Security Version' (fail secure) can be dropped manually with the supplied release key.

Q:- Does the bollard have a built-in sensor to stop it rising by accident?

A:- This bollard has an adjustable obstacle sensor, although we recommend you install the 'Safety Proximity Loop Kit' accessory as an added precaution.

Q:- How many remote controls can I have?

A:- You can order as many 'Remote Controls' as you like.

Q:- How many bollards can I connect to the control panel?

A:- You can connect and control up to 4 bollards on the same system.

Q:- Does the bollard have LED lights around the crown?

A:- Yes, this bollard has 12 x LED lights built into the crown.

Q:- What power supply do I need for the control panel?

A:- You need a 5amp RCD protected power supply for the control panel.
