BFT - Stoppy B 500

Description

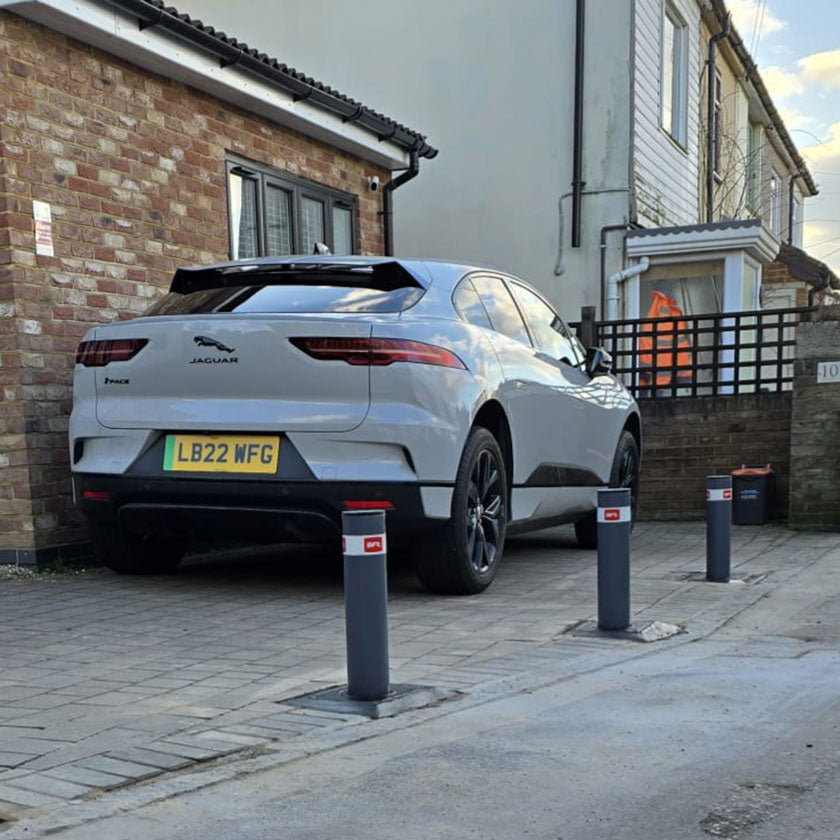

Designed and engineered by BFT Europe to the highest industry standard, the entry-level Stoppy B 500 automatic rising bollard will provide you with a long-term cost-effective solution for remote-controlled security and access control on a residential driveway to secure and protect your vehicles and property from attempted theft.

Bollard Specification

• 115mm bollard diameter.
• 500mm raised height.
• 5mm steel gauge wall.
• Anthracite Grey - RAL 7015 finish.
• No LED light crown.
• Electro-mechanical oil-sealed motor.

What's included with every bollard system?

• Quantity of bollards chosen (1 - 4 bollards).
• 1 x Perseo CBE Control Panel (will manage up to 4 bollards on the same system).
• 2 x 2-button remote controls (extra remote controls can be ordered seperately).
• 2-Year Guarantee.
• Our own easy-to-follow installation and set-up instructions (on request).
• Technical support if and when you need it.
• Free UK mainland delivery.
• 30-day returns or exchange.

Downloads

• Stoppy-B 500 Automatic Bollard Data Sheet (PDF)
• Stoppy-B Instruction Manual (PDF)
• Perseo CBE Control Panel Manual (PDF)
• Important Installation Notice.

Guarantees

• 2-year manufacturer's guarantee.
• 30-day returns or exchange.

Overview

• Price shown includes your bollard(s), 1 control panel & 2 remote controls.
• Designed for all residential access control applications.

• Manufactured to manage up to 500 movements per day.
• Control up to 4 bollards on the same control panel.
• 7-second rising time & 7-second lowering time.
• 25mtr remote control operating range (direct line of sight).
• IP 67 protection rating.
• -20 C to +60 C operating temperature.
• Integrated heating element.
• 230Vac 50Hz power supply.
• 300W motor supply.
• 7,000 joules impact resistance.
• 70,000 joules break-in proof.
• Compatible with the U-Link communication protocol.

System Accessories

• Shop Automation Accessories to build your bespoke system.

Manufacture

• Made in Italy (BFT - Europe).
• Mild steel manufactured to BS1440.
• Galvanized to BS EN ISO 1461 (2009).
• Powder-coated Anthracite Grey RAL 7015.
• 60kg overall product weight.

Installation

• Supplied as a complete ready to install system.
• 230V - 5amp RCD protected power supply required for the control panel.
• 9-10 lin mtrs of color-coded cables pre-wired to each bollard.
• Cables must be routed back to where you mount the control panel.
• Simply connect the cables to the control panel and configure the system.
• 965mm deep x 190mm square x 5mm gauge foundation box.
• 1215mm excavation depth required (includes 250mm for drainage).
• Technical help and support available to all our customers.
• Our own easy to follow configuration guide is available upon request.

FAQ's

A:- Yes, this bollard is designed to automatically drop in the event of a power cut.

Q:- Is there a way to stop the bollard dropping during a power cut?

A:- Yes, you can install the 'Battery Back-Up' accessory to keep the bollard(s) raised.

Q:- Can this bollard be lowered with a manual release key?

A:- No, this electro-mechanical bollard does not have a manual release key.

Q:- Does the bollard have a built-in sensor to stop it rising by accident?

A:- No, you would need to install the 'Safety Proximity Loop Kit' accessory.

Q:- How many remote controls can I have?

A:- You can order as many remote controls as you like.

Q:- How many bollards can I connect to the control panel?

A:- You can connect up to 4 bollards on the Perseo control panel supplied.

Q:- Does the bollard have the LED lights around the crown?

A:- No, this particular bollard does not have the built-in LED light crown.

Q:- What power supply do I need to power the control panel?

A:- You will need a 230V - 5amp RCD protected power supply for the control panel.
