E-GO Series 114-800A

Description

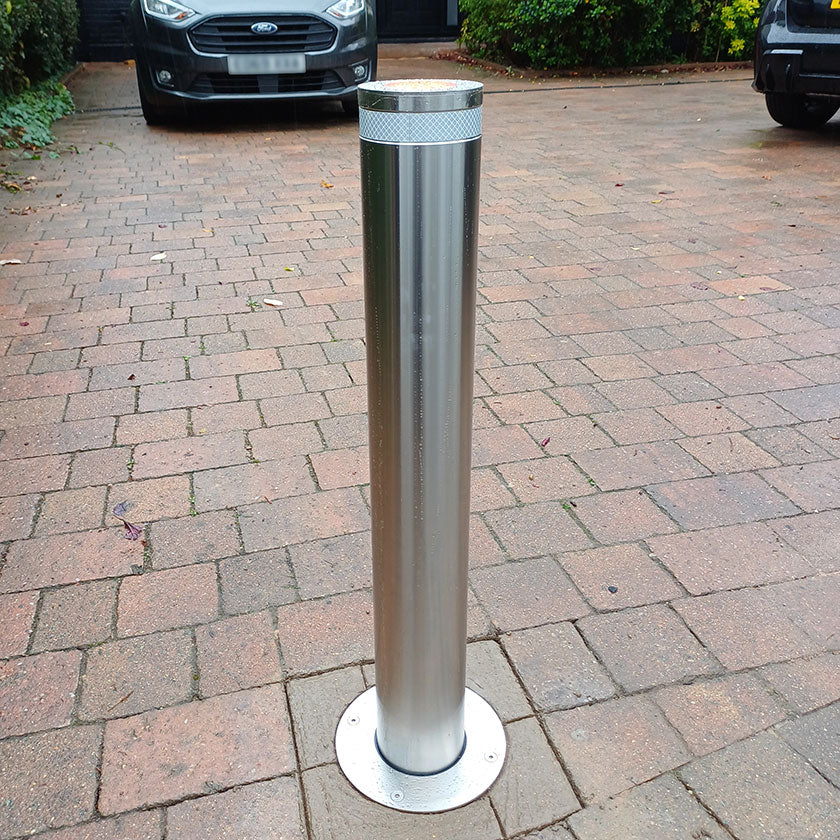

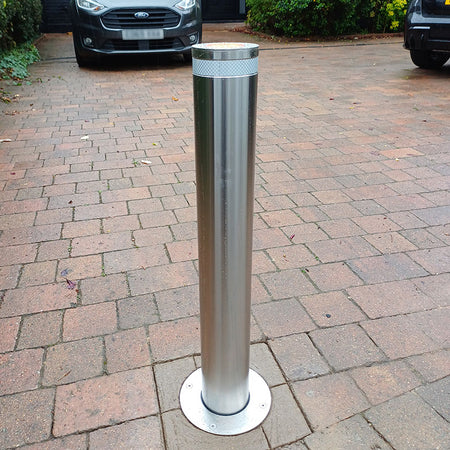

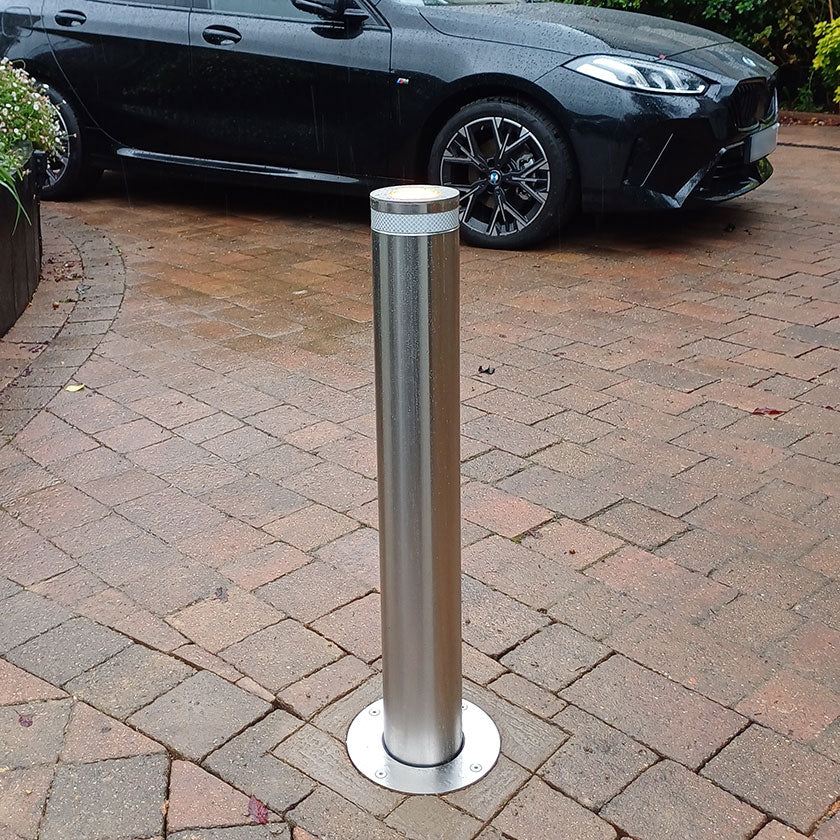

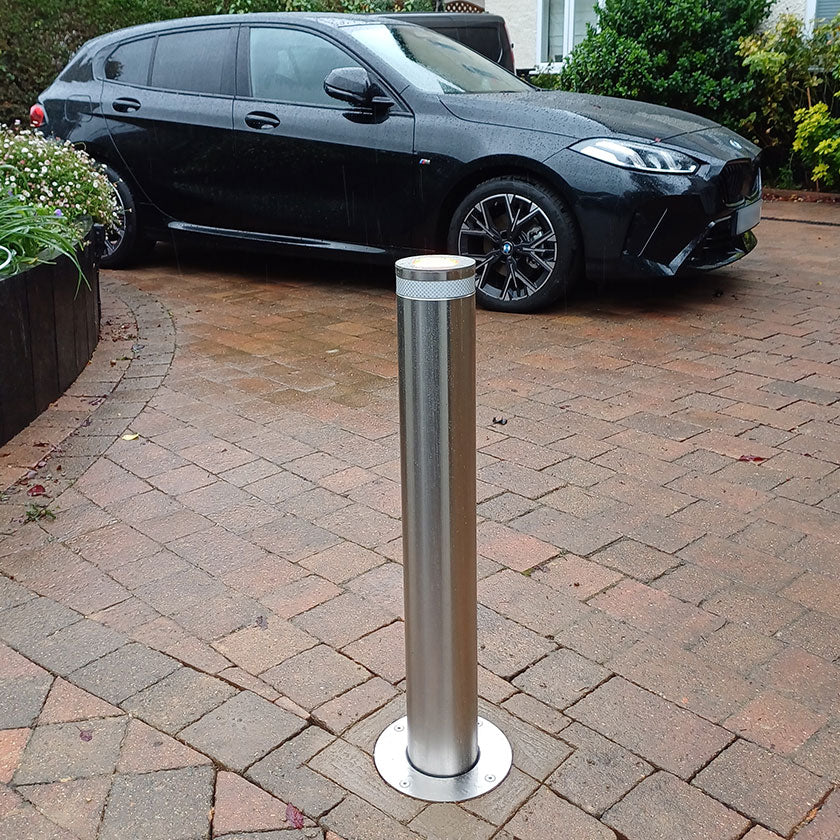

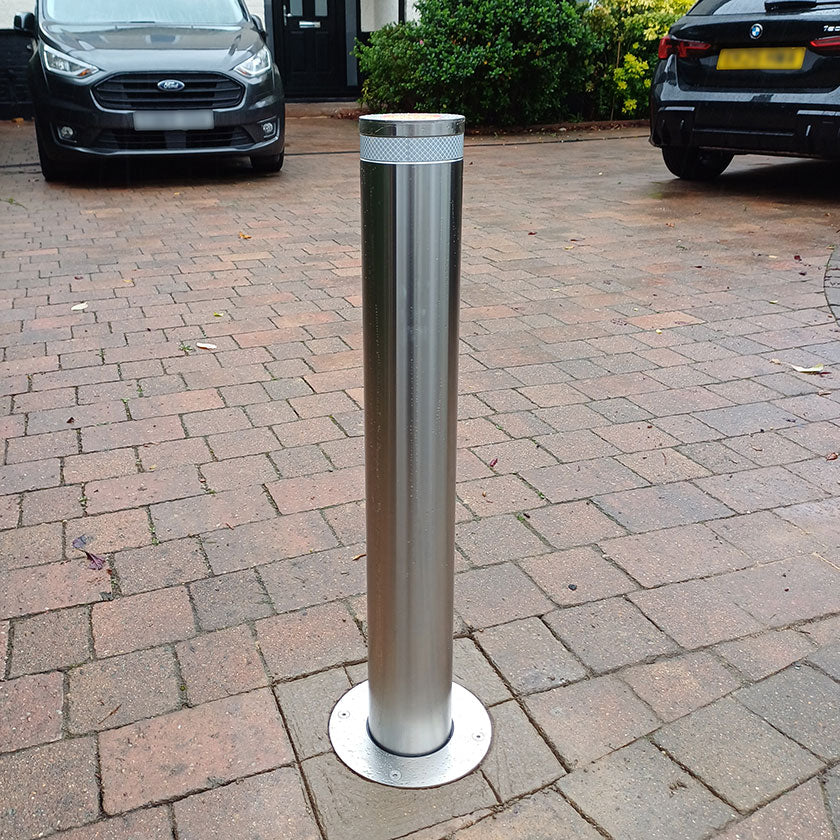

Engineered and built by Pilomat of Italy to the highest industry standard, the E-GO Series of electro-mechanical automatic bollards are primarily designed for residential projects to secure and protect the vehicles on your driveway.

With a simple installation process and a small ground footprint, they are the ideal solution for securing your vehicles and protecting your assets.

Finished in premium 304-grade stainless steel, the E-Go series of automatic bollards will provide you with effective security for your vehicles, driveway and private car parking space, and be aesthetically pleasing at the same time.

Bollards are supplied complete with the essential Pilomat control panel, and 2 hand-held remote controls and include FREE UK mainland delivery.

Bollard Specification

• 114mm bollard diameter.
• 800mm raised height.
• 4mm stainless steel gauge wall.

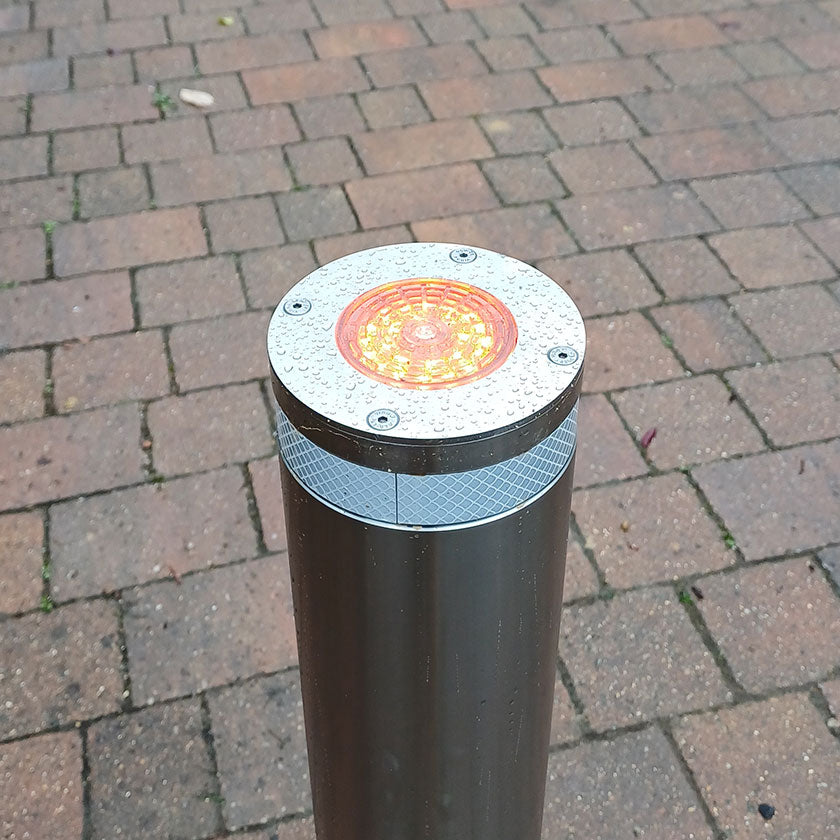

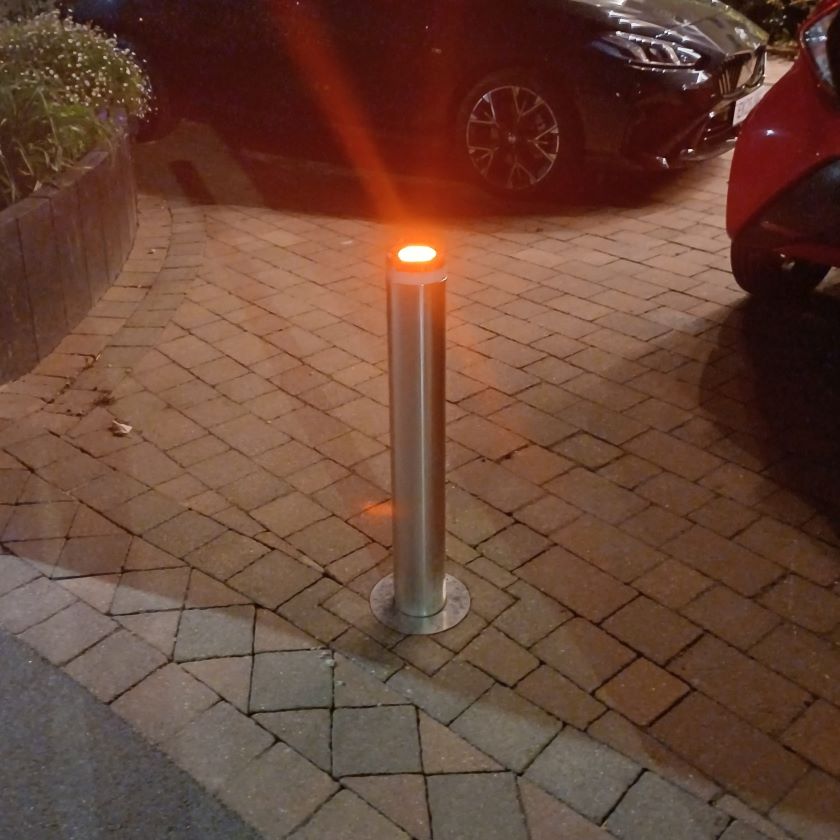

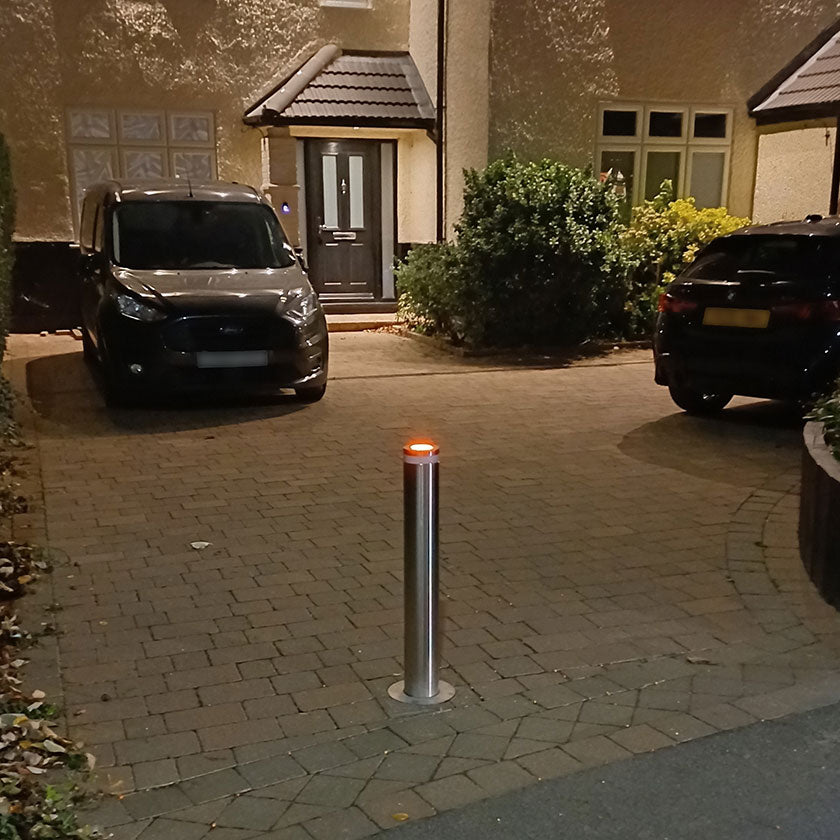

• Available with or without an LED light crown.
• Electro-mechanical oil-sealed motor.


What's included with every bollard system?

• Quantity of bollards chosen (1 - 2 bollards).
• 1 x Pilomat Control Panel (to manage up to 2 bollards on the same system).
• 2 x 2-button remote controls (extra remote controls can be ordered seperately).
• 1-Year Guarantee (for supply only)
• 2-Year Guarantee (for supply & installation).
• Our own easy to follow installation and set up instructions (on request).
• Technical suppport if and when you need it.
• Free UK mainland delivery.
• 30-day returns or exchange.

Accessories

• Shop Automation safety & control accessories to build your bespoke system.

Downloads

• E-Go Automatic Bollard Data Sheet (PDF)

Overview

• Designed for all residential access control applications.

• Manufactured to manage up to 100 movements/cycles per day.
• Life expectancy 200,000 movements/cycles.
• Control up to 2 bollards on the same control panel.
• 25mtr remote control operating range (direct line of sight).
• Integrated battery back-up.
• IP 67 protection rating.
• -20 C to +60 C operating temperature.
• Integrated heating element.
• 24v 3amp power supply.

• 16,000 joules impact resistance.
• Manufactured by Pilomat.
• Mild steel manufactured to BS1440.
• X5CrNi 18-10 (AISI 304) brushed STAINLESS STEEL finish.
• 40kg overall product weight.

Installation

• 230V power supply is required for connection to the control panel.
• Control panel has integrated RCD-protection.
• NO LED LIGHT CROWN - Bollard(s) will require 1 x 2-core 2.5mm cable at any length (not included).
• WITH LED LIGHT CROWN - Bollard(s) will require 2 x 2-core 2.5mm cable at any length (not included).
• This cable needs to be connected to the bollard(s) and terminated at the control panel.
• 220mm diameter x 5mm gauge steel bollard foundation box.
• 1065mm bollard excavation depth required (includes 200mm for drainage).

Need Installation? - What's included in our installation price?

• Installation of your bollard(s) to include backfill & surface reinstatement.

• Bollard cables routed underground to location of control panel (up to 10 lin mtrs).
• External weatherproof control panel enclosure (if required).
• Connection, configuration and commissioning of your system.
• Personal instruction on how to use and care for your system.
• All travel, groundwork, labour & materials required to complete the installation.
• 2-Year parts and labour guarantee.

Whats not included?

• Additional underground cable run to control panel (over 10 lin mtrs).
• Installation, connection, and configuration of any safety or control accessories.
• Any additional groundwork, to include installation of a soakaway (if required).
• Note: Please call us for a price if you think any of these exclusions may apply.

How to order and pay for the installation of your system

• Simply add installation to your order, and pay for your chosen bollard system and any accessories.
• We will then contact you within 48 hours to arrange a video call with you on the site for the installation.
• If required, we will also carry out a no cost on-site survey.
• You will then be offered an installation date within 14 days from the date of your order.
• Your bollard system and all associated accessories will be delivered by your installation team on the day of the installation.
• Final payment for the installation element is payable on completion.
• We accept payment with cash, credit, debit card, or BACS transfer.

FAQ's

Q:- Will the bollard automatically drop during a power cut?

A:- No, this bollard has an integrated battery back-up to allow you to still use the bollard during a power cut.

Q:- Does the bollard have a built-in sensor to stop it rising by accident?

A:- No, you would need to install the 'Safety Proximity Loop Kit' accessory.

Q:- How many remote controls can I have?

A:- You can order as many remote controls as you like.

Q:- How many bollards can I connect to the control panel?

A:- You can connect up to 2 bollards to the Pilomat control panel supplied.

Q:- Can the control panels be linked together?

A:- Yes, each control panel can be linked together for simultaneous operation of 2 or more bollards.

Q:- Does the bollard have the LED lights around the crown?

A:- You can order your bollard(s) with or without the LED light crown

Q:- What power supply do I need to power the control panel?

A:- You will need a 230V - 5amp power supply for the control panel.
