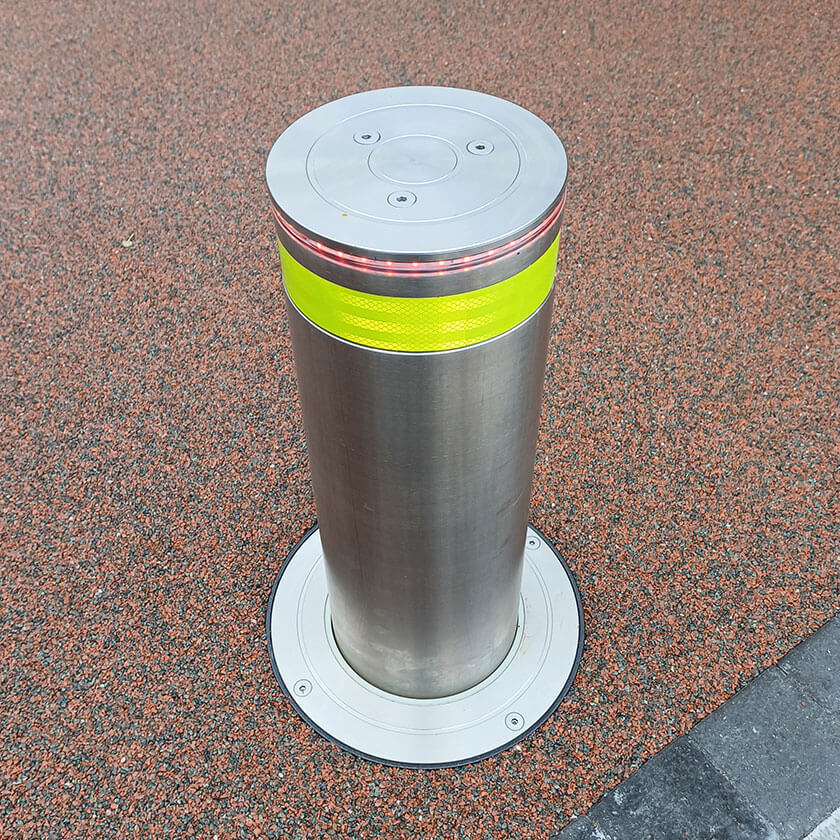

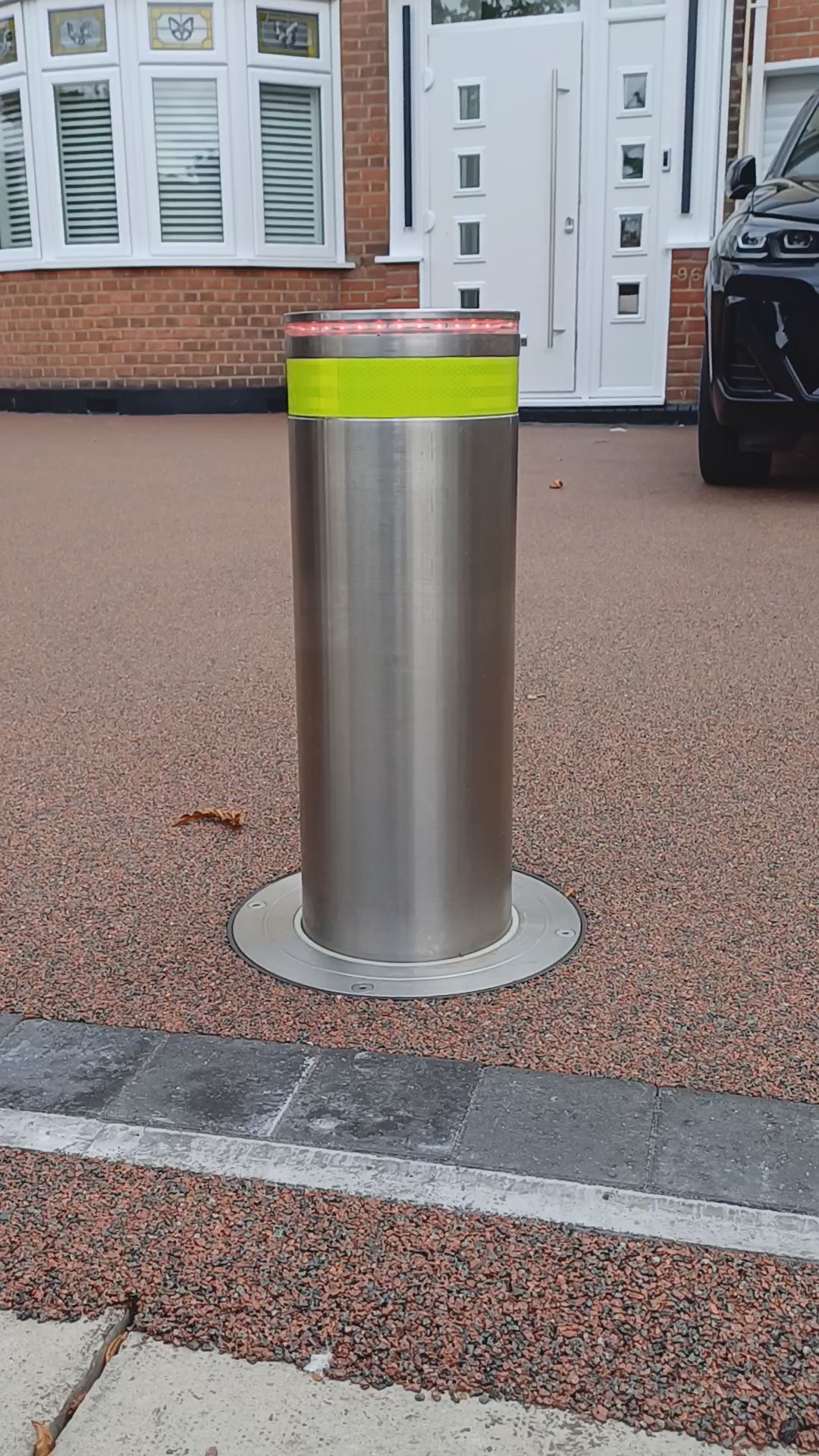

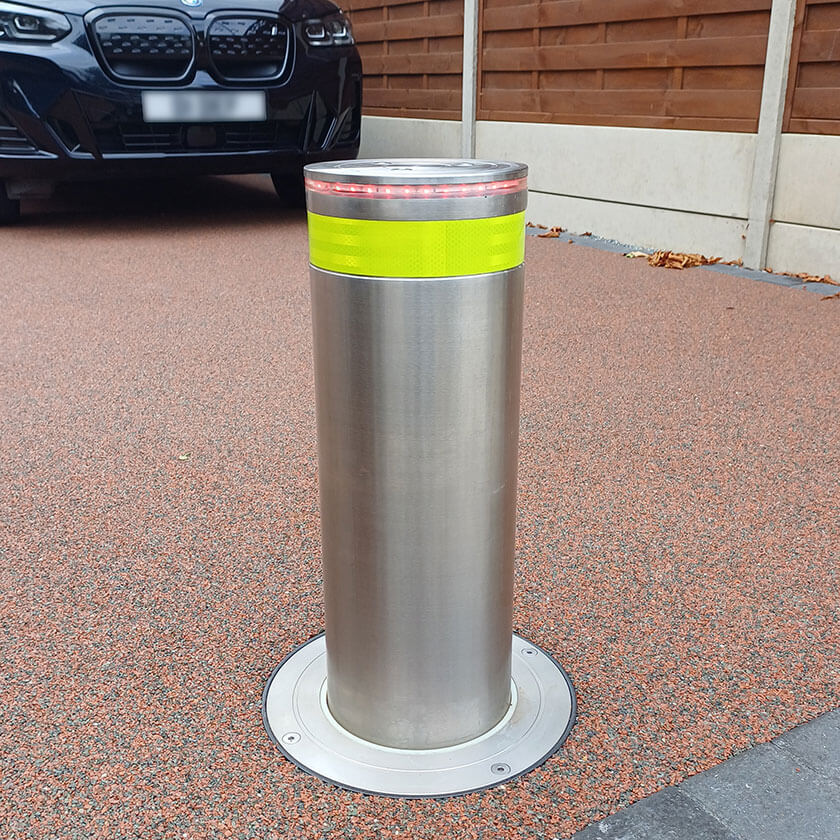

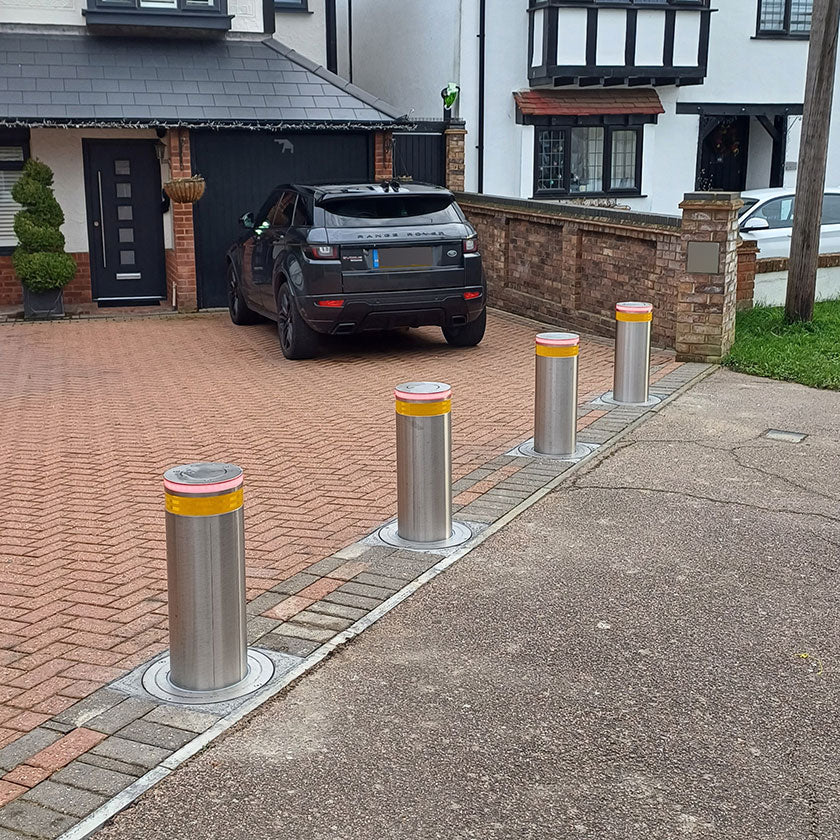

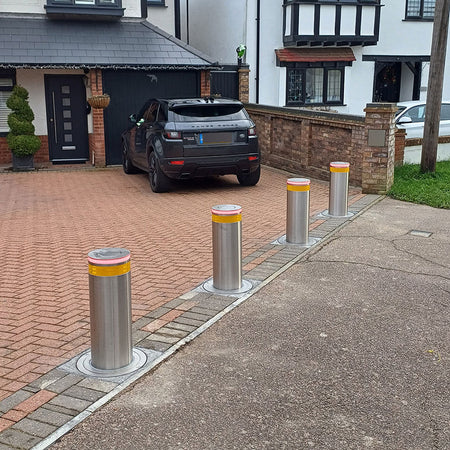

The next generation of automatic hydraulic bollards with an impressive 220mm diameter, 8mm stainless steel wall, rapid 4 second opening time and 2 second closing time, and a built-in LED light crown, the Guardian 600 from MatikGate of Portugal would be the perfect choice in any residential driveway or commercial access control application to secure and protect vehicles, property, perimeters, and buildings, etc.
Bollard Specification
- 220mm diameter.
- 600mm raised height.
- 8mm stainless steel wall.
- 304-Grade stainless steel finish.

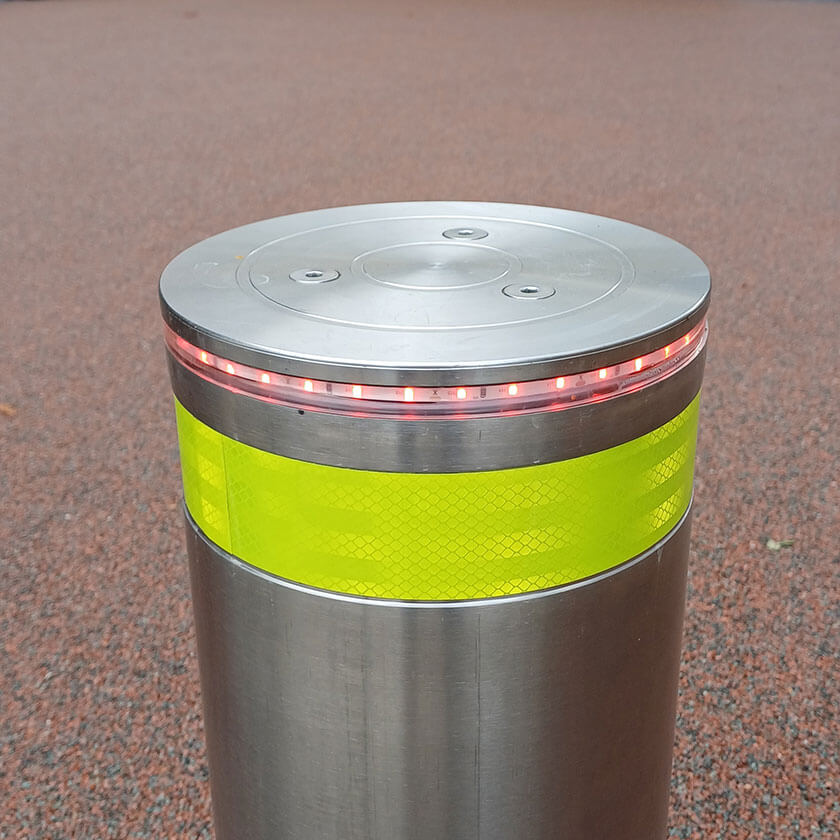

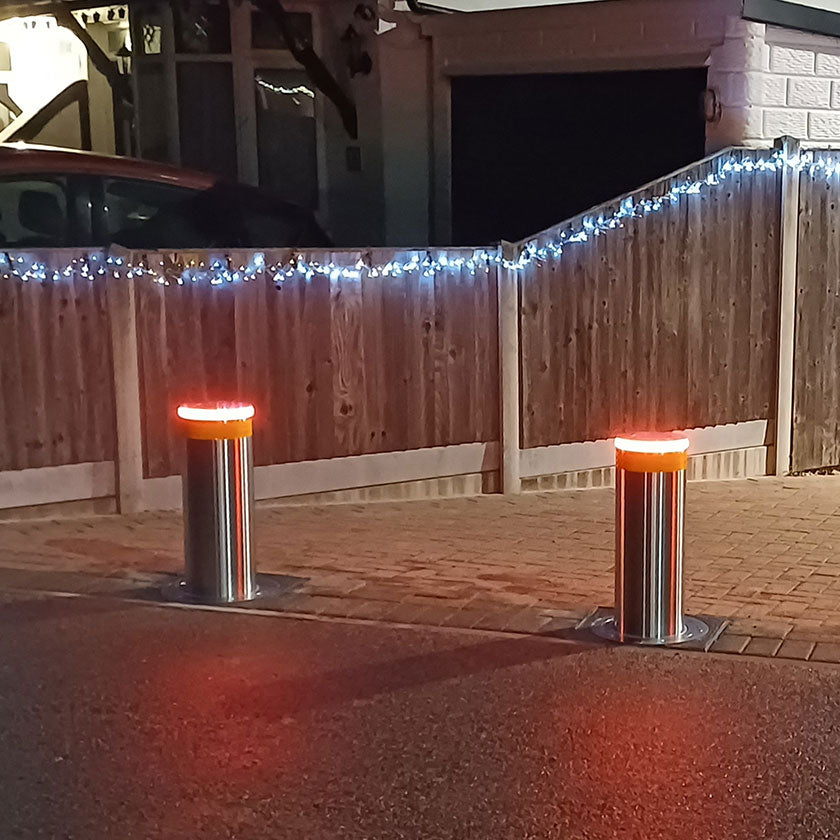

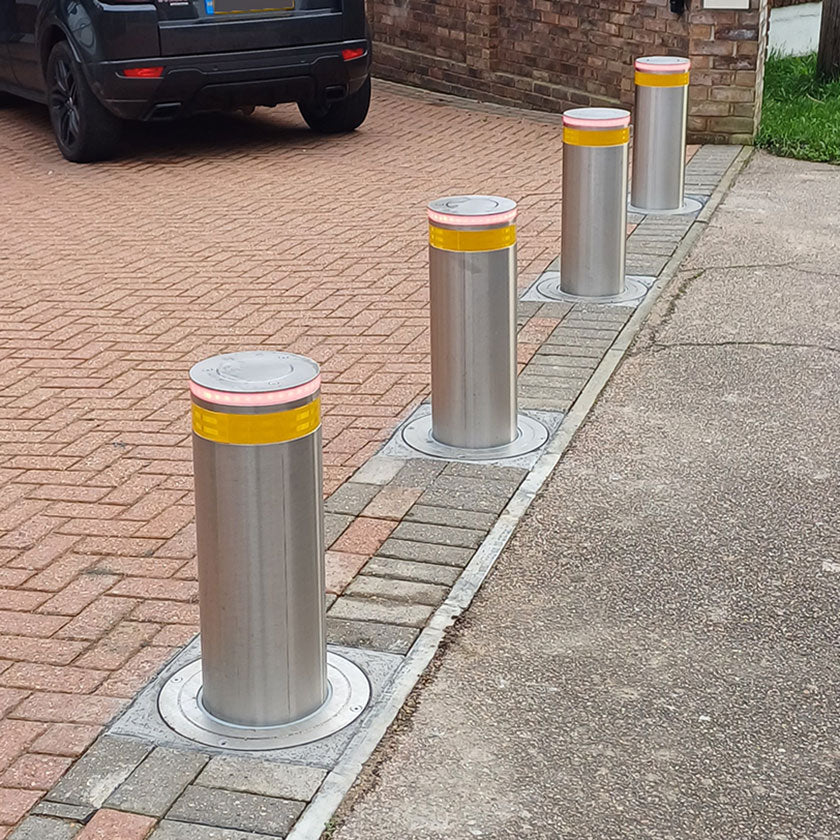

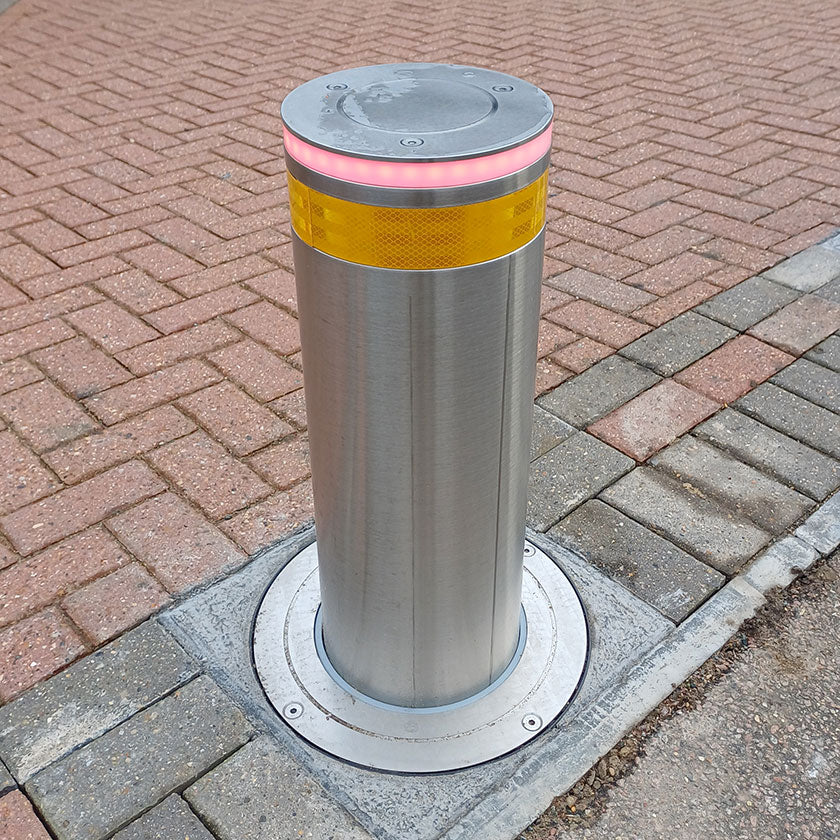

- Integral LED light crown.
- Integrated battery back-up.
- Hydraulic oil-sealed motor.
What's included with every bollard system?
- Quantity of bollards chosen (1 - 4 bollards).
- 1- 4 Pilo Control Panels (one panel per bollard, can all be linked).
- 2 x 2-button remote controls (extra remote controls can be ordered seperately).
- 2-Year Matikgate Warranty.
- Our own easy-to-follow installation and set-up instructions (on request).
- Technical support if and when you need it.
- Free UK mainland delivery.
- 30-day returns or exchange.
Downloads
Guarantees
- 2-Year Matikgate Warranty.
- 30-day returns/exchange.
Overview
- Designed for all residential and commercial access control applications.
-
Suitable for up to 200 movements per day..
-
4-second rising time & 2-second lowering time.
- 25mtr remote control operating range (direct line of sight).
- Adjustable obstacle sensor.
- AC Hydraulic motor.
- Power supply: 230Vac 50Hz.
- Motor supply: 350W.
- IP 68 protection rating.
- -35 C to + 60 C operating temperature.
- Integrated heating element.
- 20,000 joules impact resistance.
- 250,000 joules break-in proof.
- Compatible with the U-Link communication protocol.
System Accessories
Manufacture
- Made in Portugal (MatikGate).
- Mild steel manufactured to BS1440.
- 152kg overall product weight.
DIY Installation
- Supplied as a complete ready to install system.
-
230V - 5amp RCD protected power supply required for the control panel.
- 10mtrs of 7 core cable supplied for attachment to bollard.
- Cables must be routed back to where you mount the control panel.
- Simply connect the cables to the control panel and configure the system.
- 1110mm deep x 400mm square x 5mm gauge foundation box.
- 1360mm excavation depth required (includes 250mm for drainage).
- Technical help and support available to all our customers.
- Our own easy to follow configuration guide is available upon request.
Our Installation Service
- The price we quote you for all system installations includes the following:
- Installation of your bollards, routing of all cables below ground, mounting, connection, and configuration of the control panel, and pairing the supplied remote controls.
- Installation and set-up of any accessories chosen.
-

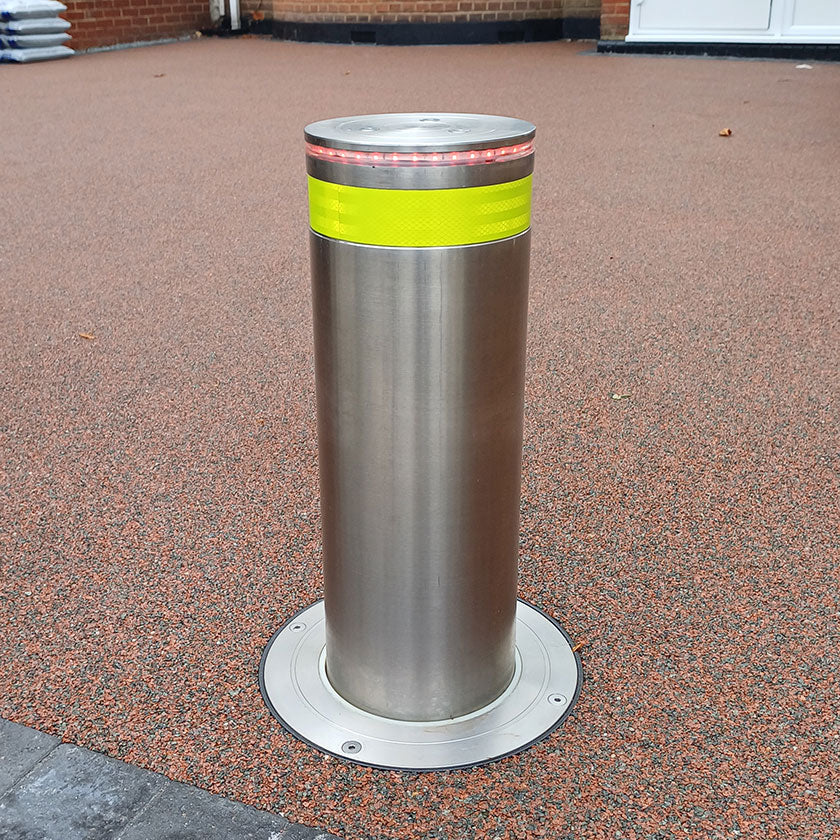

Underground ducting, surface reinstatement, and spoil removal from the site.
- Materials, labour, and travel.
FAQ's
Q:- How many remote controls can I have?
A:- You can order as many remote controls as you like.
Q:- How many bollards can I connect to the control panel?
A:- You can have as many bollards as you need, because the control panels can be linked together.
Q:- Does the bollard have LED lights around the crown?
A:- Yes, this bollard has a full LED light crown.
Q:- What power supply do I need for the control panel?
A:- You need a 6amp RCD protected power supply for the control panel.
Our Installation Service & What's Included:
- Site survey.
- All materials, travel and labour.
- Spacing of bollards(s) prior to excavation.
- CAT scan to detect any underground services.

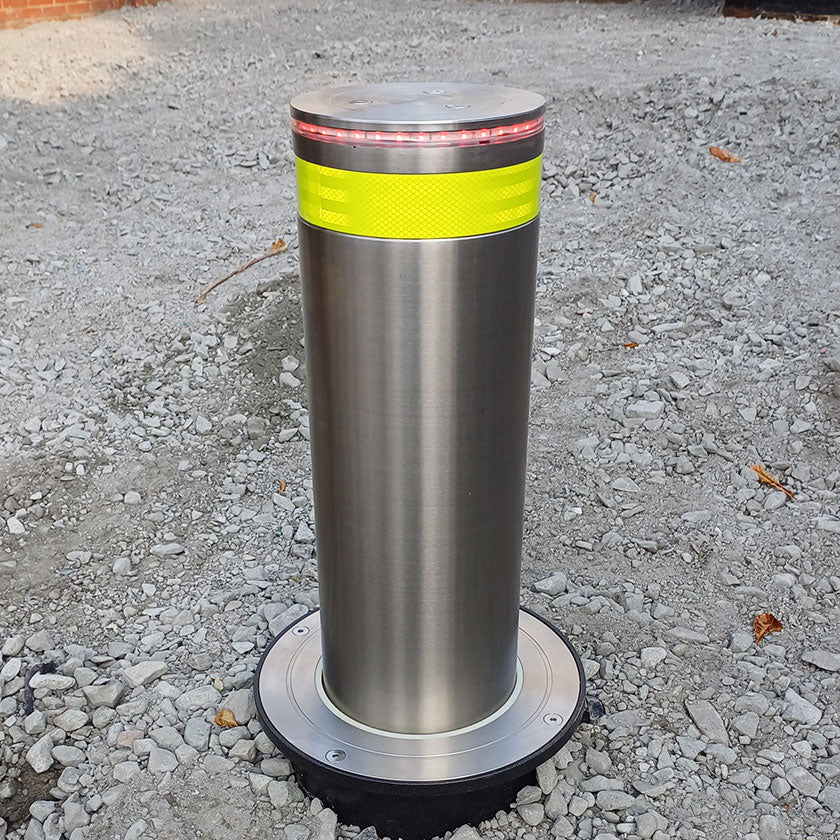

- Excavation, alignment and back-fill of bollard(s).
- Routing bollard cables back to the control panel.
- Reinstatement and spoil removal from site.
- Connecting all cables to the control panel.
- Set-up and configuration of the control panel.
- Instruction on how to use your system(s).
REQUESTING A QUOTE FOR AUTOMATIC BOLLARD INSTALLATION:-
- When you've chosen your bollard(s), click on the product for more information, and then click the 'Request Installation Quote' tab for that particular bollard.
- We will then ask you for a few questions about your proposed system and the type of application.
- Complete and submit the form, and we will get back to you within 48 hours with an installation quotation.
