RD4S Telescopic Bollard

The RD4S is a premium stainless steel telescopic driveway bollard that delivers exceptional security with a sophisticated, corrosion-resistant finish. Designed and built in the UK, this lockable stainless steel telescopic bollard for driveways combines robust protection with elegant aesthetics, making it the ideal choice for discerning homeowners.

Manual Control, Maximum Security

This retractable bollard for driveways features smooth manual operation, allowing you to raise and lower the post effortlessly while locking securely into position whether raised or lowered. The award-winning push-button 10-pin high-security cam-lock provides outstanding protection against unauthorized access, complemented by a stainless steel cover plate and handle for superior durability.

Built to Endure

Crafted with a robust 3.6mm stainless steel gauge wall and finished in premium 304-grade stainless steel, this residential driveway bollard offers exceptional resistance to weathering and corrosion. Standing 580mm when raised with a 76mm diameter, the RD4S is engineered for long-term performance. Each bollard is supplied with 2 keys and backed by a comprehensive 1-year guarantee.

British Engineering Excellence

The RD4S represents the perfect fusion of form and function—a premium stainless steel solution that protects your property while enhancing its visual appeal with a contemporary, maintenance-free finish.

Specification

• 76mm bollard diameter.
• 580mm raised height.
• 7kg pull up weight.
• 3.6mm gauge stainless steel wall.
• 'Award Winning' high-security 10pin top lock.
• 2 keys supplied per bollard (more keys can be ordered below).
• 304-grade brushed stainless steel finish.
• RD4S telescopic bollard data sheet (PDF)

Guarantees

• 30-day returns or exchange.
• 1-year manufacturer's guarantee.
• Accredited to the 'Secured by Design' Police initiative.
• Manufactured to meet the 'Sold Secure' industry standard.

Overview

• Designed for any contemporary residential high-security, access control, car parking application.
• High-security protection on your driveway for a saloon and estate type vehicle.
• Inserted with the 'Award Winning' 10 pin push-button top lock.

• Unique key & lock number allocated to your bollard(s).
• Keys can't be copied or the lock picked or drilled.

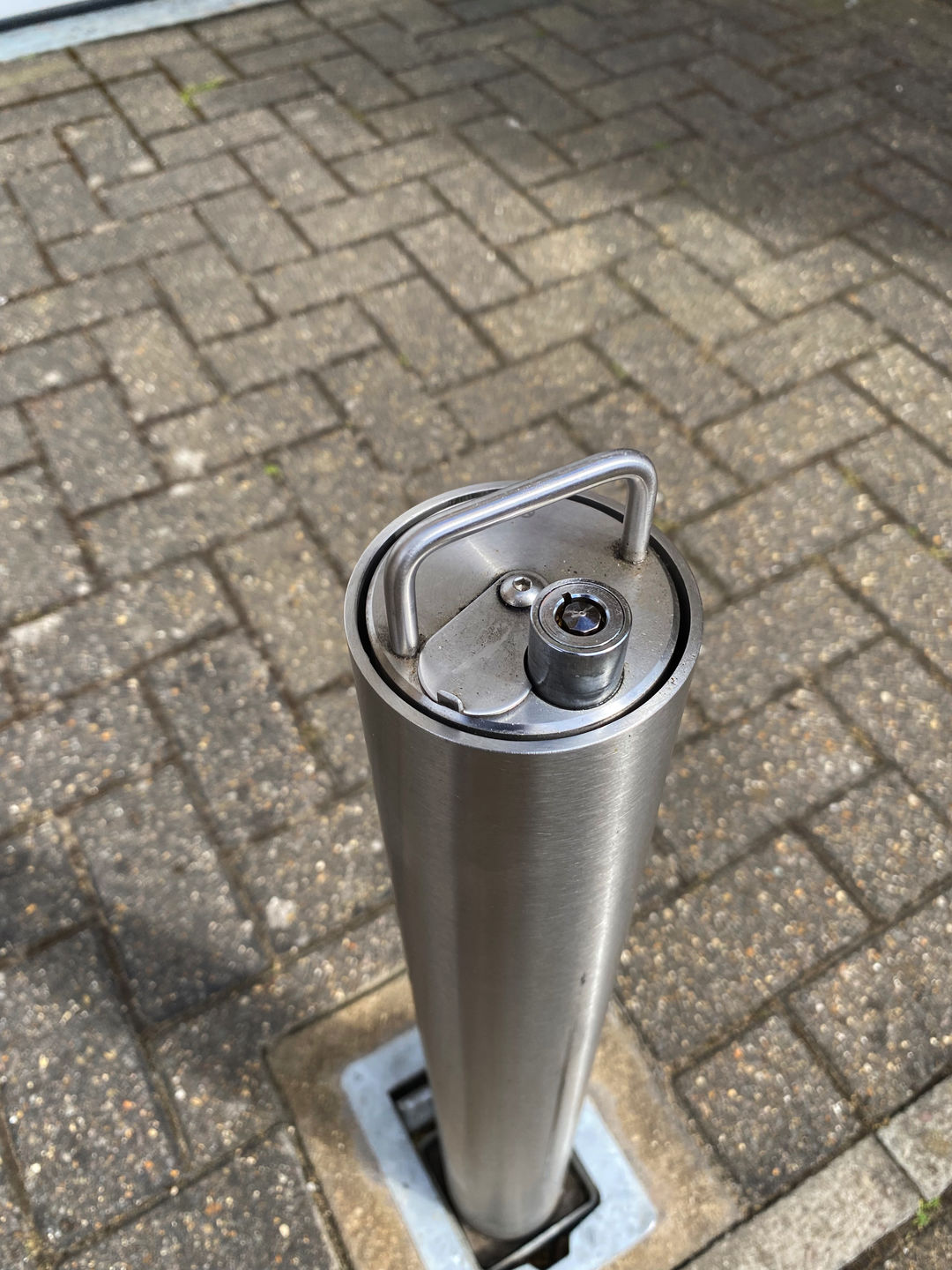

• Stainless steel cover plate to protect the lock.
• Lightweight, and easily raised and lowered in seconds.
• Fixed stainless steel lifting handle.
• Lockable in the raised and lowered position.
• Heavy-duty hinged lid to protect the bollard when lowered.
• Fully serviceable and replaceable components.

Manufacture

• Represents the very best of British design and engineering.
• Hand-built to order here in the UK.
• 810mm x 120mm x 3.6mm galvanized steel outer casing.
• Mild steel components manufactured to BS1440.
• All parts hot-dipped galvanized to BS EN ISO 1461 (2009).
• 20kg overall product weight.

Maintenance

• To help keep the 10pin top-lock in tip-top condition, we recommend the regular use of our specially formulated lubricating lock oil.
• This will ensure the smooth operation of your bollard for many years to come.
• Keep the base of the bollard clear of dirt, debris, and leaves, etc.
• Cleaning the retractable inner bollard.

Ground Conditions

• Suitable for flat or sloping ground and any hard or soft surface.
• Not recommended for sites prone to regular deep water flooding.
• Areas with a high water table may experience slower water dispersion.

DIY Installation

• Excavation depth: 960mm (includes 150mm for drainage).
• Tools required - CAT scanner, stone cutting saw, concrete breaker, post borer, long-arm graft, shovel, spirit level, trowel, hand tools, and a wheelbarrow.
• Materials required - 20mm shingle, 10mm shingle, ballast, sharp sand, rapid set cement, cement dye (optional), mortar plasticiser, and water.
• Approx time to install - 1-2 hours (per bollard).
• DIY installation guide (PDF)

Our Installation Service

• Price applies to the installation of a single bollard and includes the all-important cable avoidance scan (CAT scan), road tolls, fuel, alignment, excavation, installation, materials, surface reinstatement, and spoil removal from the site.
• Your installer's vehicle is fully equipped and will carry the necessary tools to complete the work. Your installer will also provide their own electricity and water supply.
• Discounts are available for multiple installations at the same location (see our 'Buy More - Save More' rates above).
• More details about our installation service

Ordering your installation(s)

• To have one of our experienced, fully insured operatives install your bollard(s) simply 'ADD INSTALLATION' to your order.
• You will then be allocated an installer, and your goods will be manufactured and delivered to you within the estimated delivery date shown above.
• Once you receive your goods, simply contact your allocated installer to arrange an installation date that we guarantee will be carried out within the estimated installation date shown above.
• The postcode areas we cover
